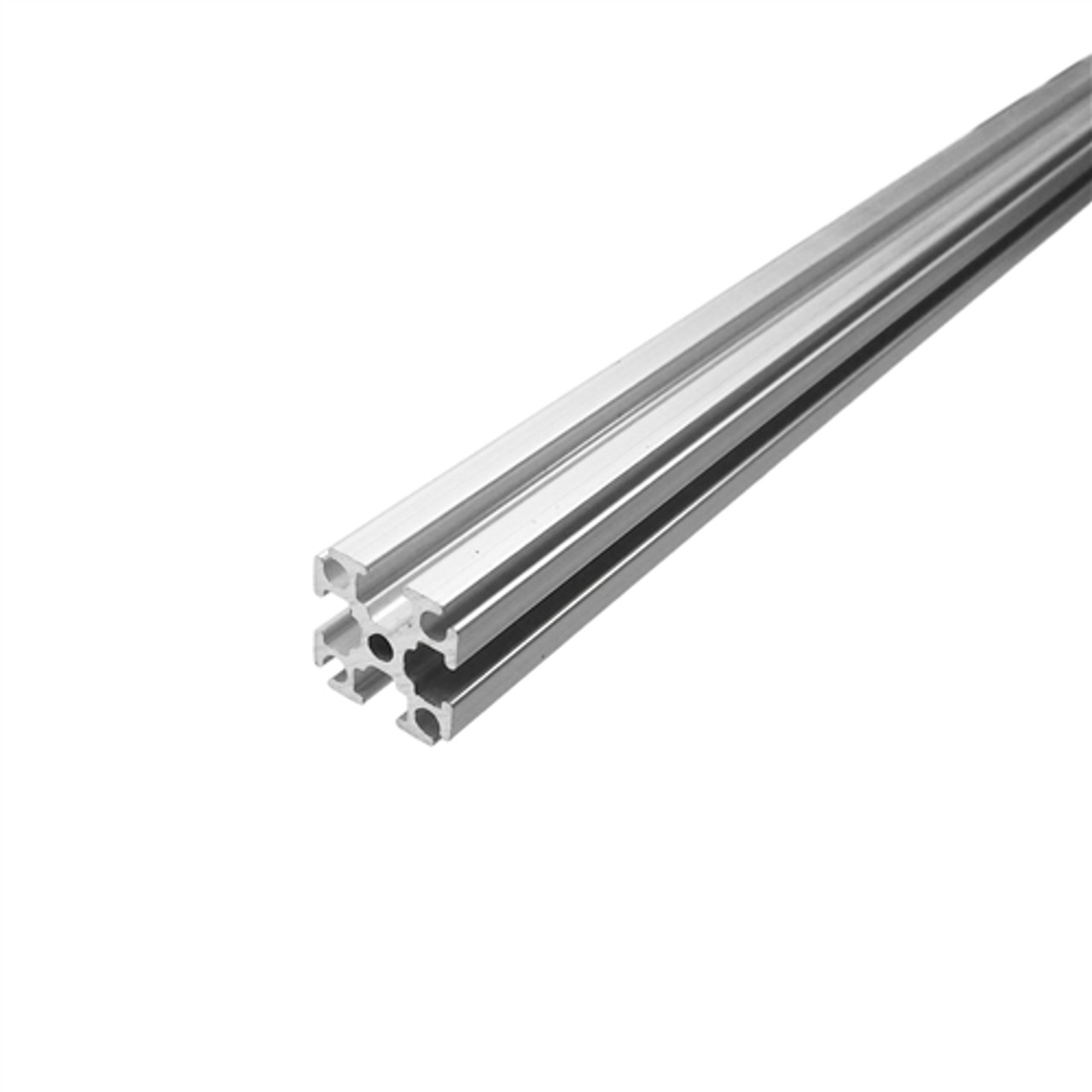

15mm Extrusion – 225mm – 90° Ends – 2 Pack

$12.50

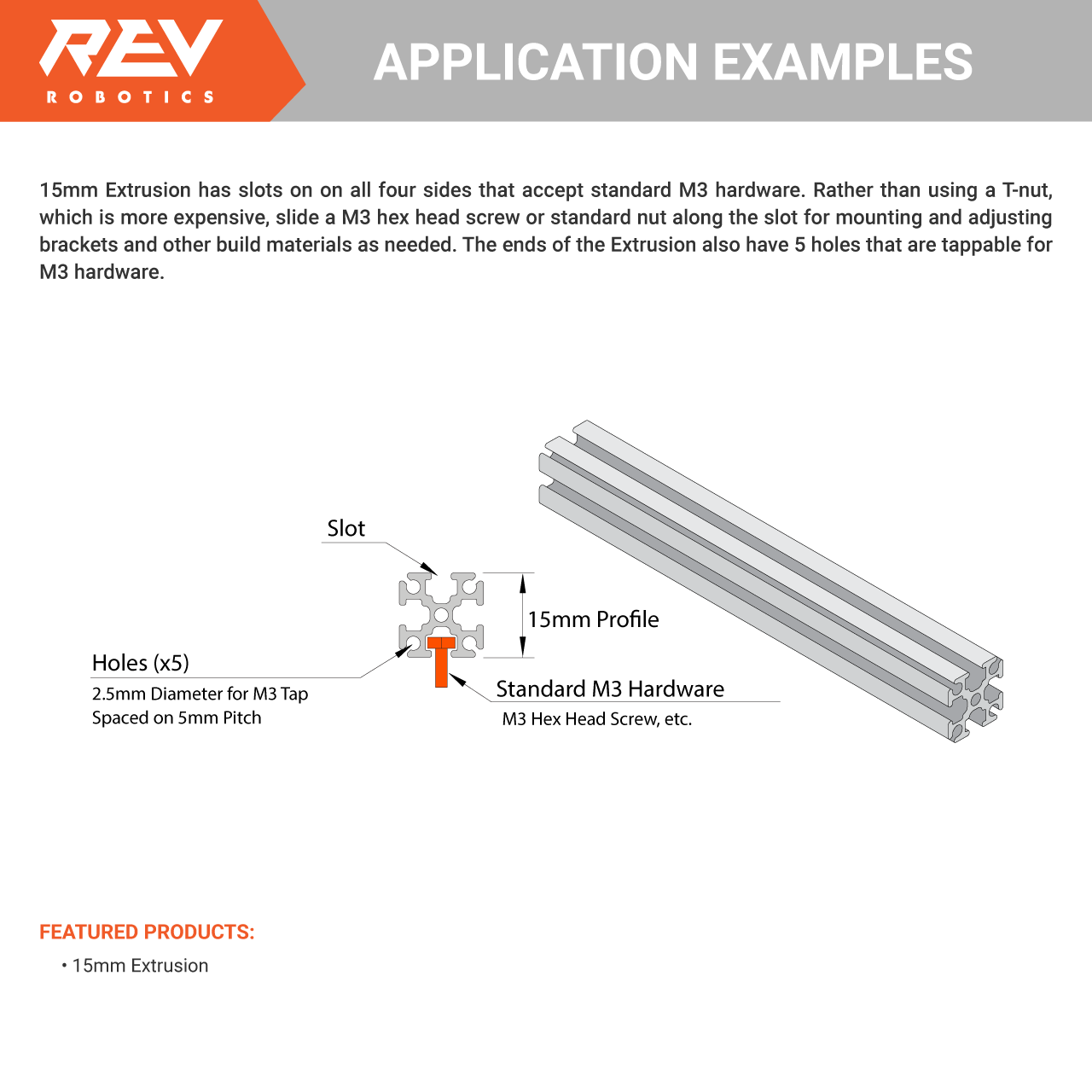

For smaller applications the DUO Build System also comes in a 15mm x 15mm square extrusion. The 15mm profile of the 15mm Extrusion has slots on on all four sides that accept standard M3 hardware. Rather than using a T-nut, which is more expensive, slide a M3 hex head screw along the slot and adjust brackets and other build materials as needed.

This product is a 2-pack of 225mm pieces of extrusion, for when you need a shorter piece of extrusion without extra cutting.

20 in stock (can be backordered)

Description

Features

  • All holes can be tapped with an M3 tap
  • Slots are compatible with standard M3 hex nuts and M3 hex-head cap screws as studs

Specifications

  • Material: 6063-T5 aluminum, clear anodized
  • Height: 15mm
  • Width: 15mm
  • Length: 225mm

Additional information

Dimensions 2.25 × 1.5 × 1.5 cm
