Description
Features
- All holes can be tapped with an M3 tap
- Slots are compatible with standard M3 hex nuts and M3 hex-head cap screws as studs
Specifications
- Material: 6063-T5 aluminum, clear anodized
- Height: 15mm
- Width: 15mm
- Length: 420mm

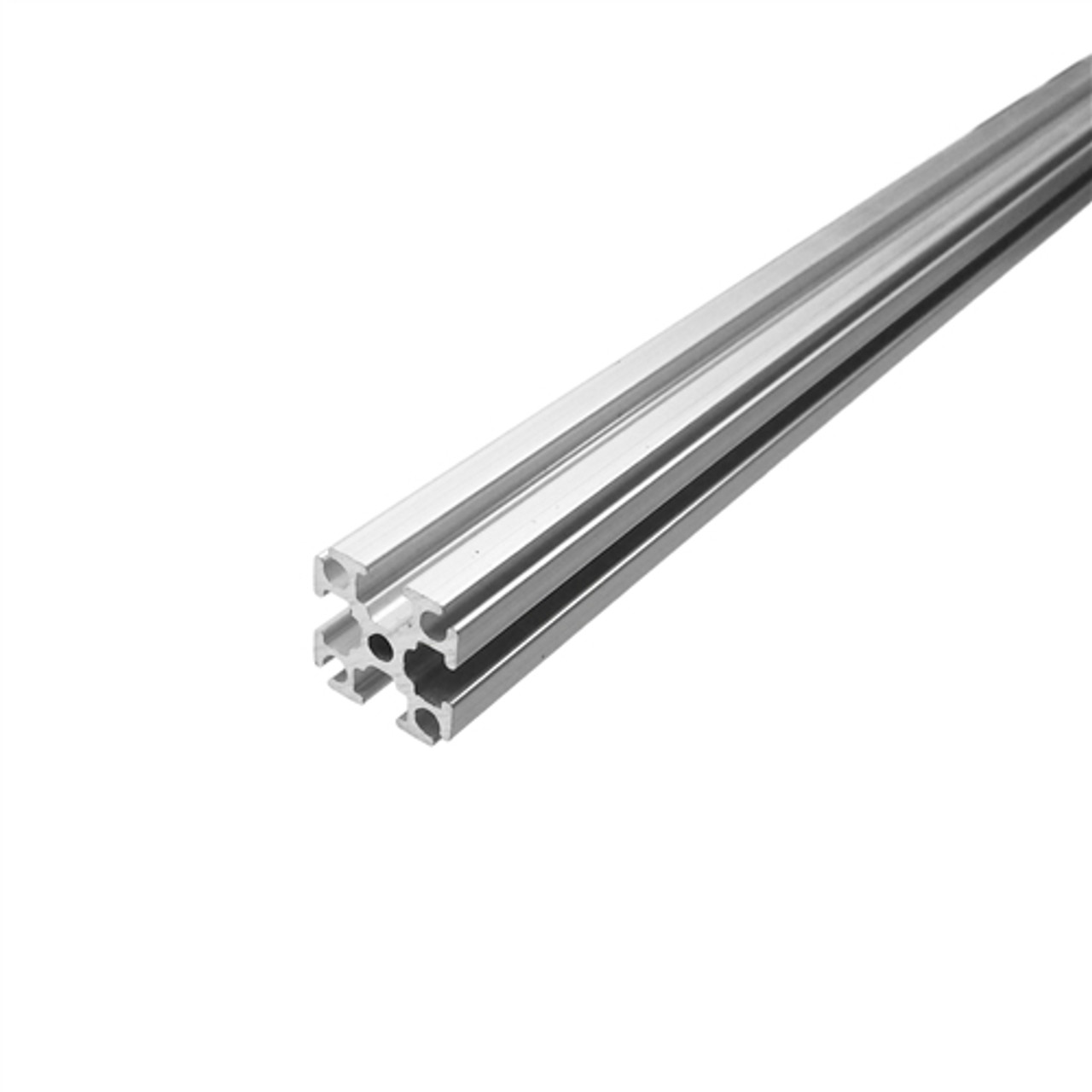

REV DUO 15mm Extrusion - 420mm - 90° Ends - 4 Pack
$29.00

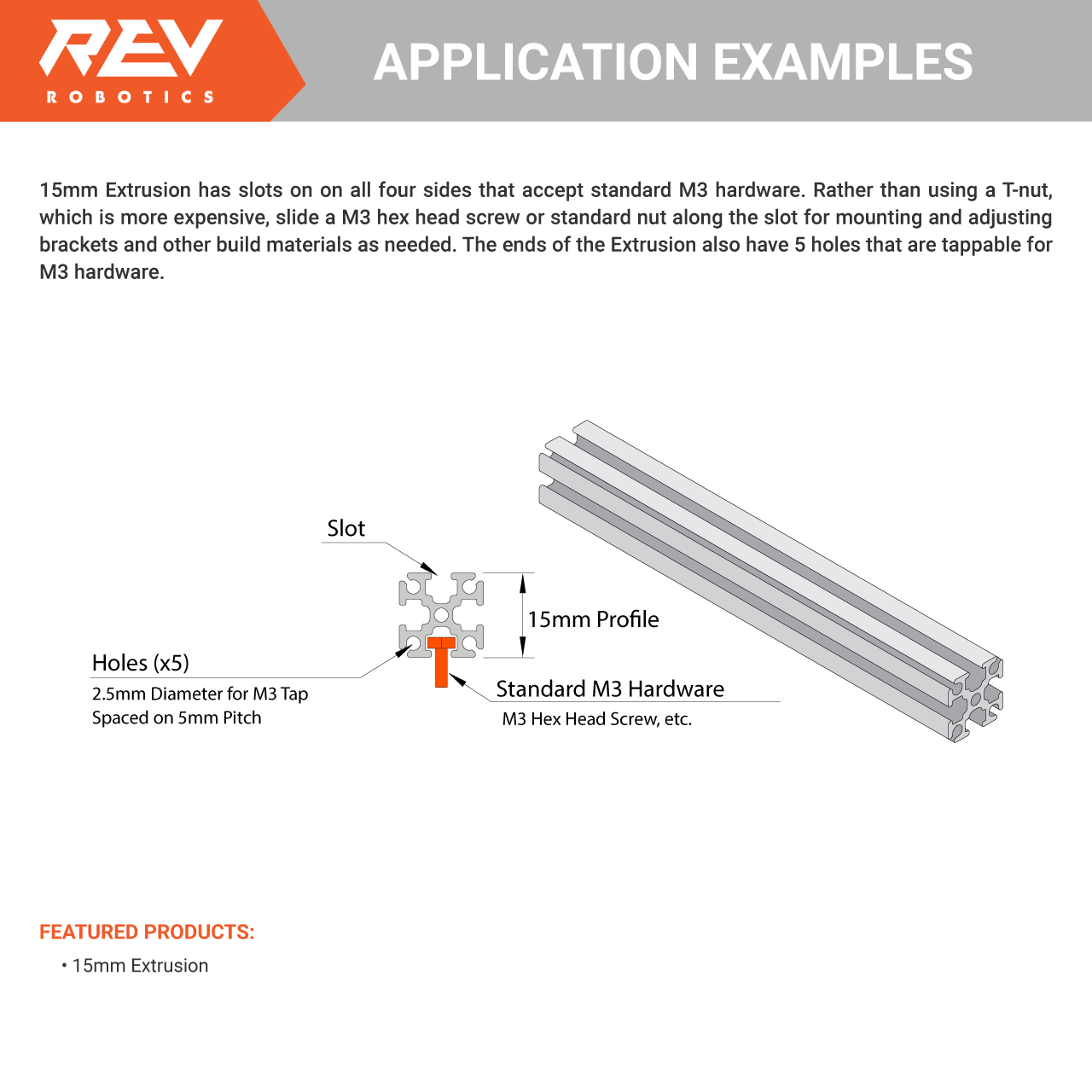

For smaller applications the DUO Build System also comes in a 15mm x 15mm square extrusion. The 15mm profile of the 15mm Extrusion has slots on on all four sides that accept standard M3 hardware. Rather than using a T-nut, which is more expensive, slide a M3 hex head screw along the slot and adjust brackets and other build materials as needed.
This product is a 4-pack of 420mm pieces of extrusion, an appropriate length to fit within the frame perimeter on your FTC robot without extra cutting.
20 in stock (can be backordered)
Dimensions | 4.2 × 1.5 × 1.5 cm |
---|
