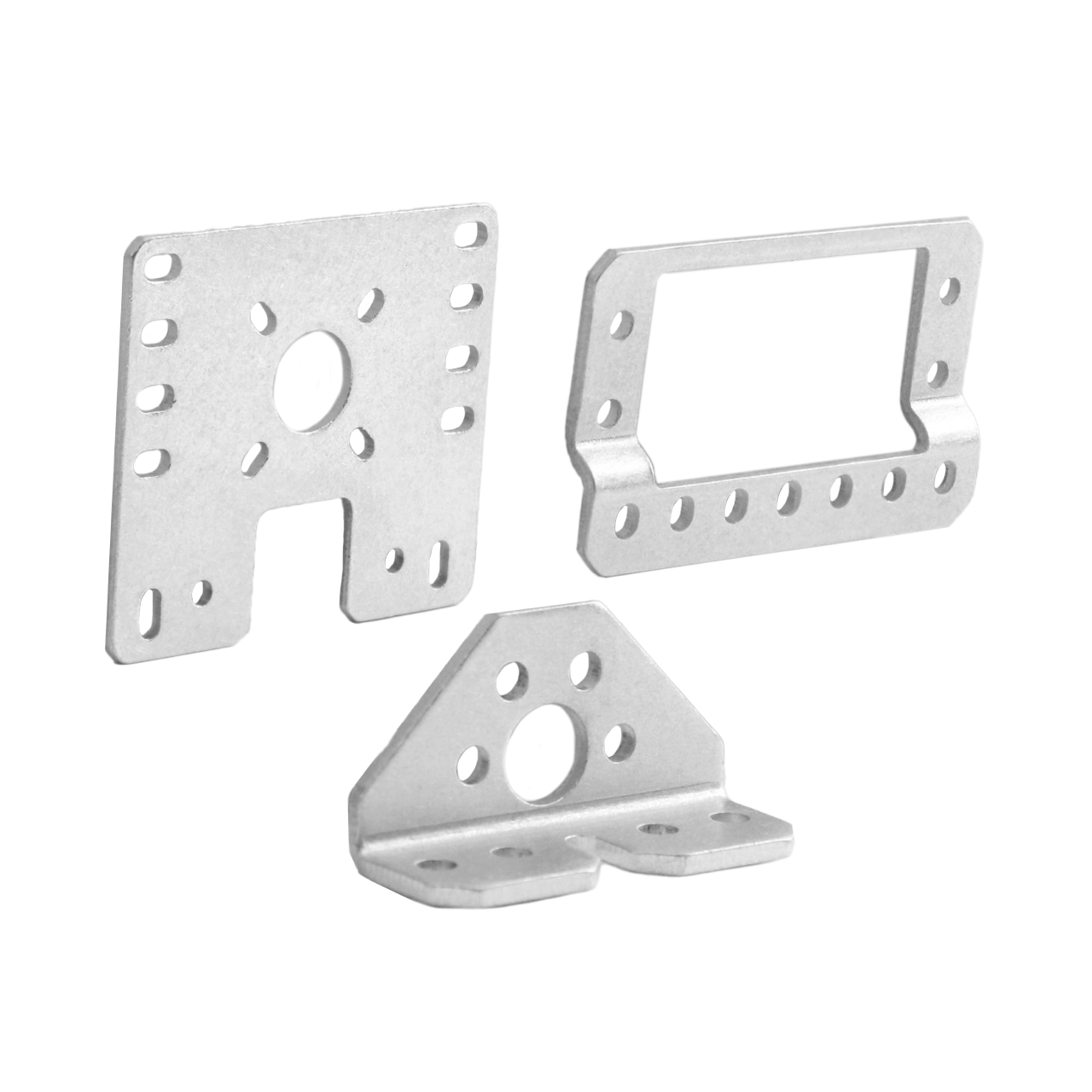

15mm Metal Brackets are compatible with the REV DUO System. Each bracket includes holes on an 8mm grid that is compatible with many other building systems.

The 15mm Metal Bent Core Hex Motor Bracket V2 (REV-41-1433) is used to mount the Core Hex Motor to 15mm Extrusion inline with other low-profile motion components.

The 15mm Metal Bent Planetary Motor Bracket (REV-41-1563) and 15mm Metal Flat Planetary Motor Bracket (REV-41-1564) are used to mount HD Hex Motors with planetary gearboxes to 15mm Extrusion. The 15mm Metal Bent Bare Motor Bracket (REV-41-1566) and 15mm Metal Flat Bare Motor Bracket (REV-41-1567) are used to mount bare HD Hex Motors without gearboxes to 15mm Extrusion. The 15mm Metal Flat HD Hex Motor Bracket V2 (REV-41-1486) and 15mm Metal Bent HD Hex Motor Bracket V2 (REV-41-1487) are used to mount the HD Hex Motor and AndyMark Neverest motors to the 15mm Extrusion.

The 15mm Metal Offset Servo Bracket V2 (REV-41-1475), 15mm Metal Flat Servo Bracket V2 (REV-41-1484), and 15mm Metal Bent Servo Bracket V2 (REV-41-1485) allow you to mount standard size servos inline with other low-profile motion components. The 15mm Metal Inside Channel Servo Bracket (REV-41-1681) is designed for mounting a standard size servo, like the Smart Robot Servo, to the inside of REV U Channel and the 15mm Metal Outside Channel Servo Bracket (REV-41-1682) is designed for mounting a standard size servo, like the Smart Robot Servo, to the outside of REV U Channel.
