15mm Plastic Brackets

Name: 15mm Plastic Brackets
SKU: 4725
Availability: InStock

$8.50 – $9.50

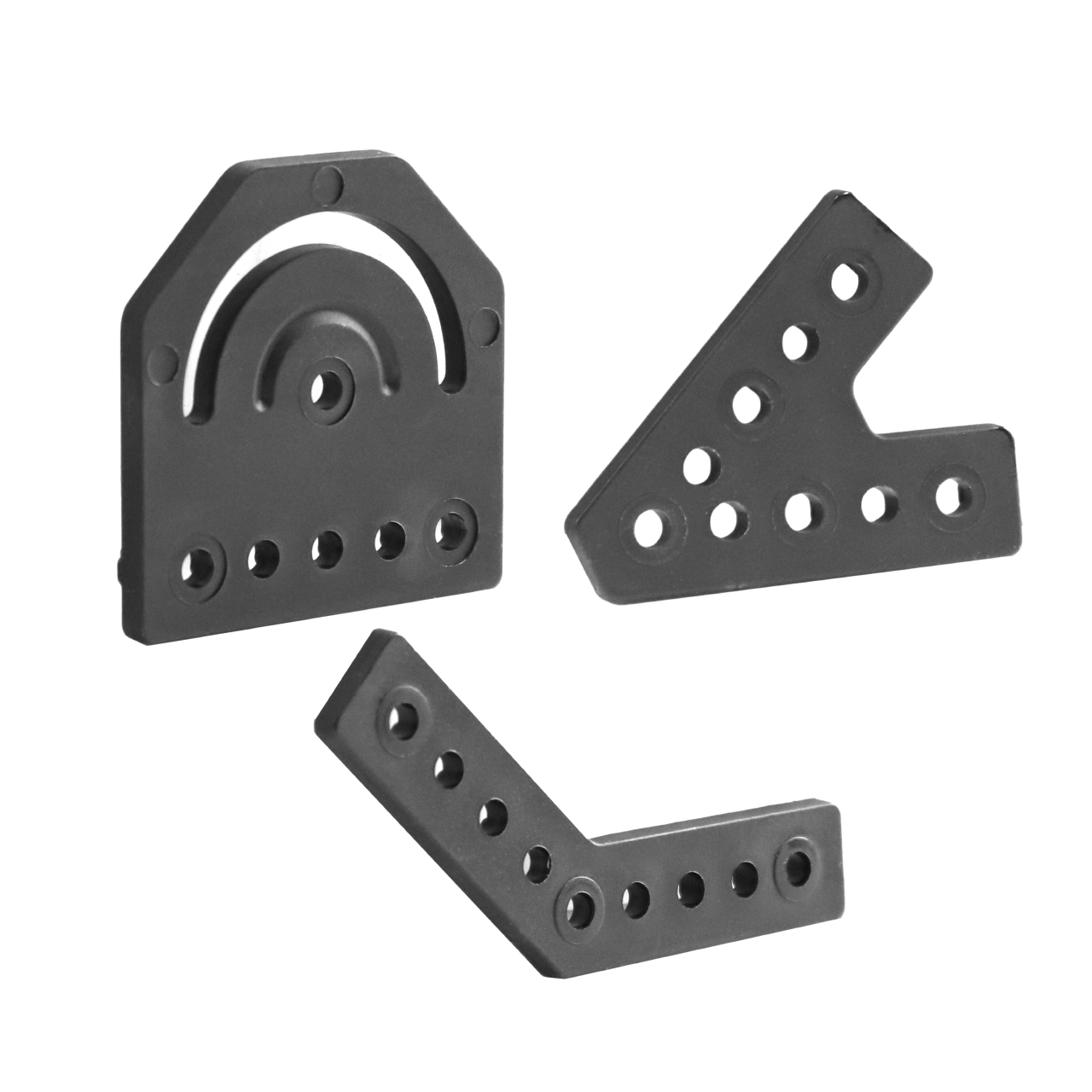

15mm Plastic Brackets are compatible with the REV DUO System. Each bracket includes a set of alignment ribs designed to seat the bracket into the extrusion channel increasing joint alignment, strength, and rigidity.

The 15mm Plastic Variable Angle Bracket (REV-41-1318) has a larger arced channel allowing two pieces of extrusion to be adjusted to any angle. The smaller arced indentation is a drill alignment mark so once the angle is set, an additional bolt can be added to lock the bracket angle in place.

Type

Clear

SKU: N/A Categories: Brackets, REV DUO, Structure Tags: 15mm Plastic Brackets, Adjustable Angle Brackets, Angle Adjustment Brackets, High-Strength Plastic Brackets, Motion Brackets, Nylon 15mm Brackets, Plastic Extrusion Brackets, REV DUO System Brackets, REV Robotics Brackets, Shaft Support Brackets

Description

Specifications

Material: Nylon (PA66)
Thickness: 3mm
Hole Diameter: M3 clearance
Hole Grid Spacing: 8mm

Product Options

SKU	PRODUCT NAME
REV-41-1308-PK8	15mm Plastic 30 Degree Bracket – 8 Pack
REV-41-1307-PK8	15mm Plastic 45 Degree Bracket – 8 Pack
REV-41-1306-PK8	15mm Plastic 60 Degree Bracket – 8 Pack
REV-41-1305-PK8	15mm Plastic 90 Degree Bracket – 8 Pack
REV-41-1311-PK6	15mm Plastic 120 Degree Bracket – 6 Pack
REV-41-1310-PK8	15mm Plastic 135 Degree Bracket – 8 Pack
REV-41-1312-PK6	15mm Plastic 150 Degree Bracket – 6 Pack
REV-41-1318-PK4	15mm Plastic Variable Angle Bracket – 4 Pack

Additional information

Type

(REV-41-1308-PK8) 15mm Plastic 30 Degree Bracket – 8 Pack, (REV-41-1307-PK8) 15mm Plastic 45 Degree Bracket – 8 Pack, (REV-41-1306-PK8) 15mm Plastic 60 Degree Bracket – 8 Pack, (REV-41-1305-PK8) 15mm Plastic 90 Degree Bracket – 8 Pack, (REV-41-1311-PK6) 15mm Plastic 120 Degree Bracket – 6 Pack, (REV-41-1310-PK8) 15mm Plastic 135 Degree Bracket – 8 Pack, (REV-41-1312-PK6) 15mm Plastic 150 Degree Bracket – 6 Pack, (REV-41-1318-PK4) 15mm Plastic Variable Angle Bracket – 4 Pack
