Description
Features
- All holes can be tapped with an M3 tap
- Slots are compatible with standard M3 hex nuts and M3 hex-head cap screws as studs
Specifications
- Material: 6063 Aluminum
- Height: 15mm
- Width: 30mm
- Length: 1m

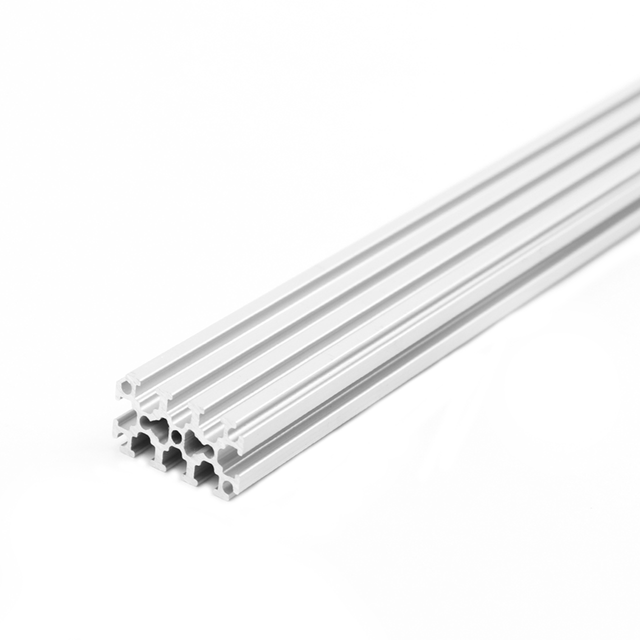

15mm x 30mm Extrusion – 1m – 90° Ends
$18.00

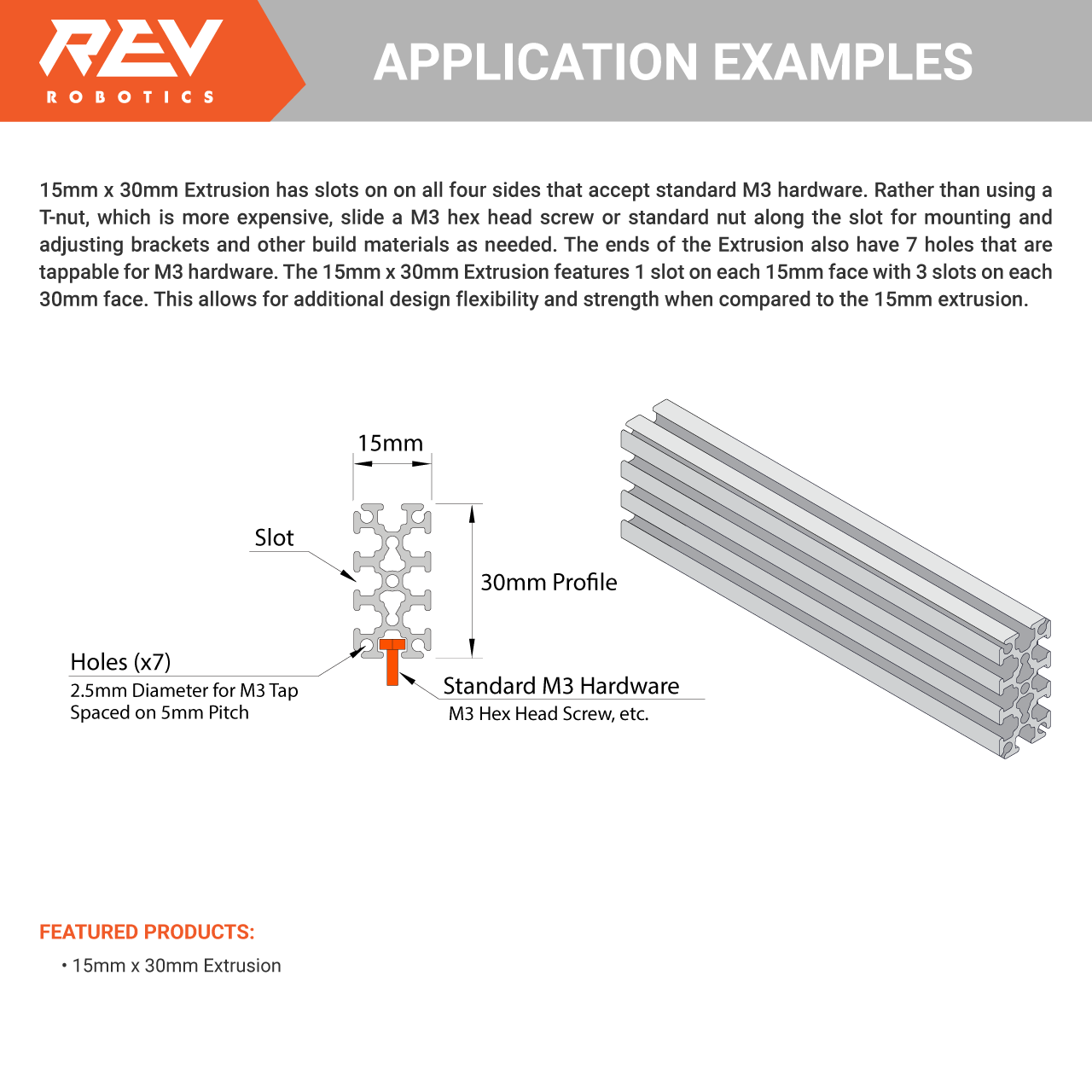

REV Building System also comes in a 15mm x 30mm square extrusion. The slots are designed to fit standard M3 hardware rather than expensive t-nuts. Use the 15mm x 30mm extrusion when more strength is needed for an application.
Additional information
| Dimensions | 0.1 × 3 × 1.5 cm |
|---|---|
| Colour | Clear Anodized, Black Anodized |
