45mm U Channel – 24mm

$6.25

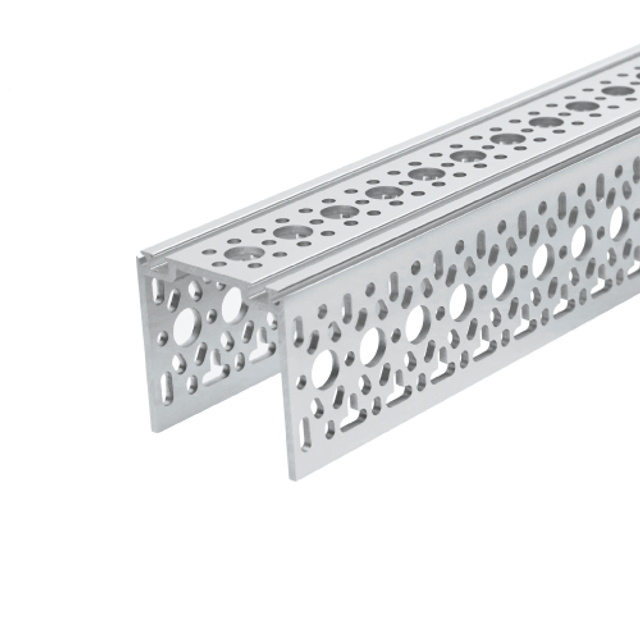

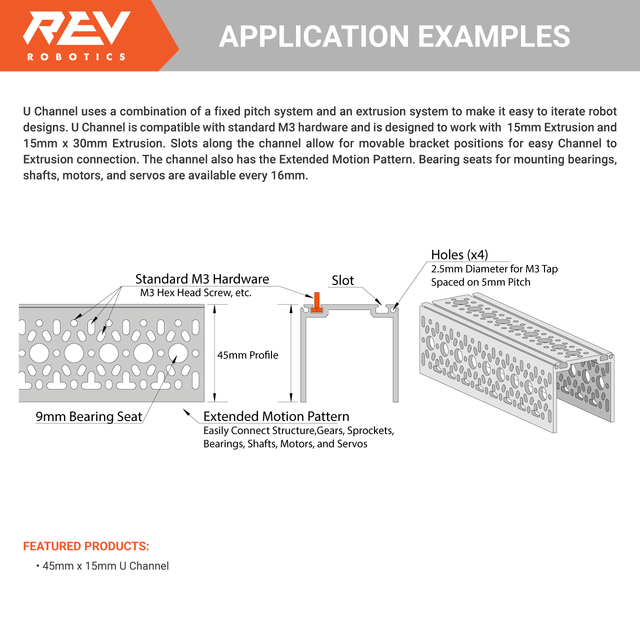

REV 45mm U Channel has a 45mm x 45mm square profile, and is designed to work seamlessly with existing REV 15mm Extrusion. It can be used in locations where additional torsion strength is required. On the sides of the channel is the Extended Motion Pattern which uses M3 hardware for attaching brackets, extrusion, and channel together. Locations for mounting bearings, shafts, motors, and servos are available every 16mm. Slots on the top of the channel accept standard M3 hex-head bolts or nuts, rather than expensive t-nuts. The top of the channel also has the Motion Pattern with M3 holes on a 16mm diameter circle pattern repeating down the channel.

20 in stock (can be backordered)

Description

Features

  • Extended Motion Pattern allows for easy connecting of structure, gears, sprockets, and motors.
  • All mounting holes fit M3 Hardware.
  • Uses 9mm Plastic Bushings or Metal Bearing Mount for rotary motion
  • Slots are compatible with standard M3 hex nuts and M3 hex-head cap screws as studs.

Specifications

  • Material: 6063-T6 aluminum
  • Height: 45mm
  • Width: 45mm
  • Length: 24mm

Additional information

Dimensions 2.4 × 4.5 × 4.5 cm
