Digital LED Indicator – Red/Green – 4 Pack

$17.50

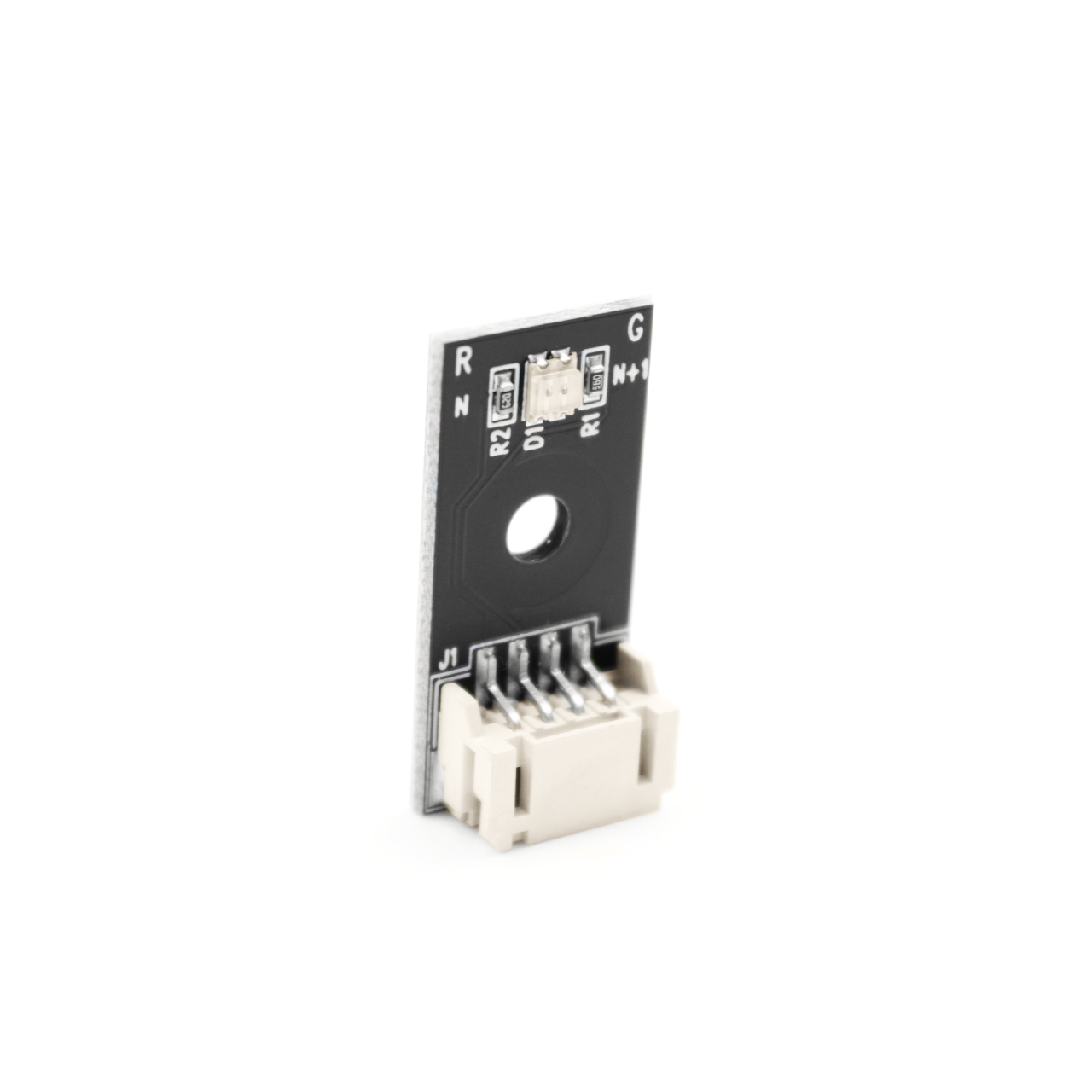

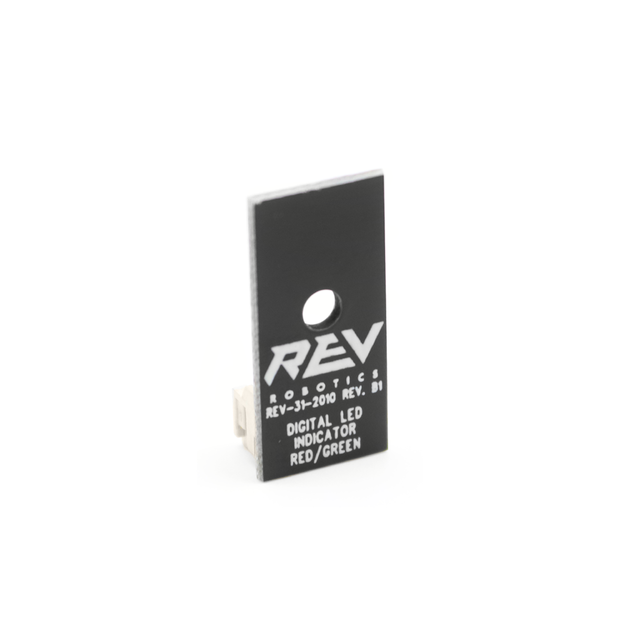

The Digital LED Indicator is a LED signal module that is digitally controlled (active low) and offers three colors: red, green, and amber. The Digital LED Indicator is designed to directly interface with the DIO ports of the Expansion Hub or Control Hub.

Note: When using the Digital LED Indicator outside of the REV Hub environment, make sure to check that your device GPIO pins’ current sink rating can handle 20mA.

20 in stock (can be backordered)

Description

Specifications

Operating Voltage: 3.3V
Current Draw (at 3.3V): 20mA (when one LED is on); 40mA (when both LEDs are on)
Input Type: DIO, Active-low
Color Modes: Red, Green, Amber (both LEDs on)
Forward Voltage: 2.2V Green, 2.1V Red
Viewing Angle: 170 degrees
Dimensions: 28 mm x 13.5 mm
Mounting Hole Diameter: 0.15” (3.81mm)

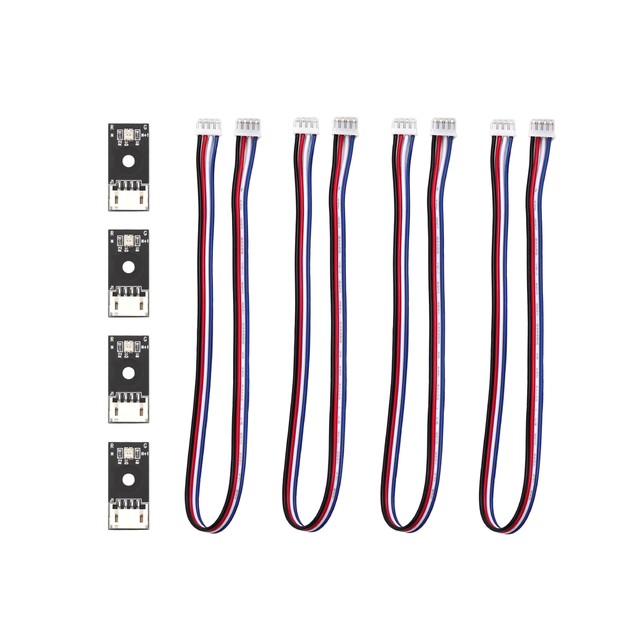

Kit Contents

SKU	PRODUCT NAME	PRODUCT QUANTITY	PACK QUANTITY
REV-31-2010-PK4	Digital LED Indicator Board	QTY 4
REV-31-1407	4-Pin JST PH Sensor Cable, 30CM	QTY 4
