DUO Compliant Wheels

$22.00

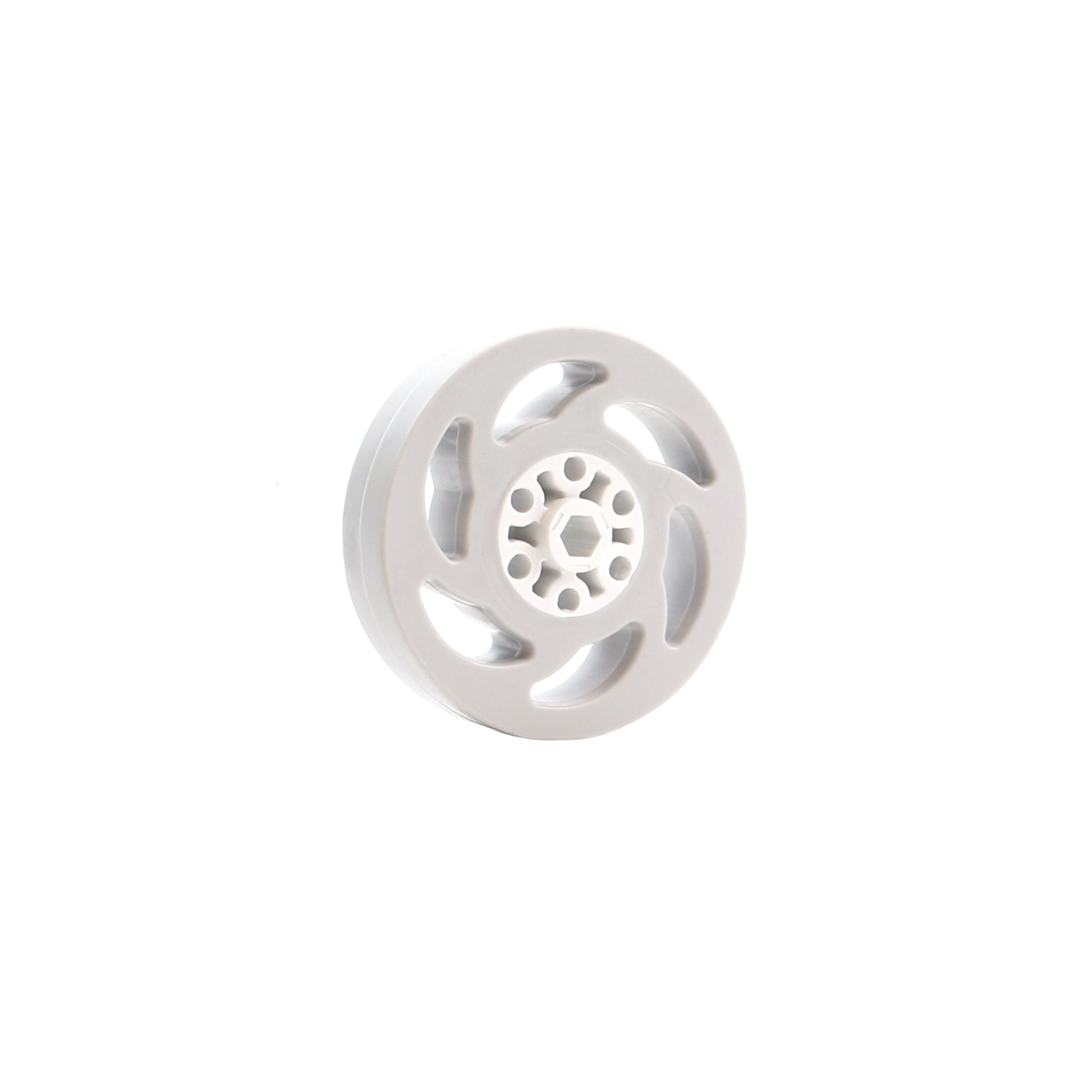

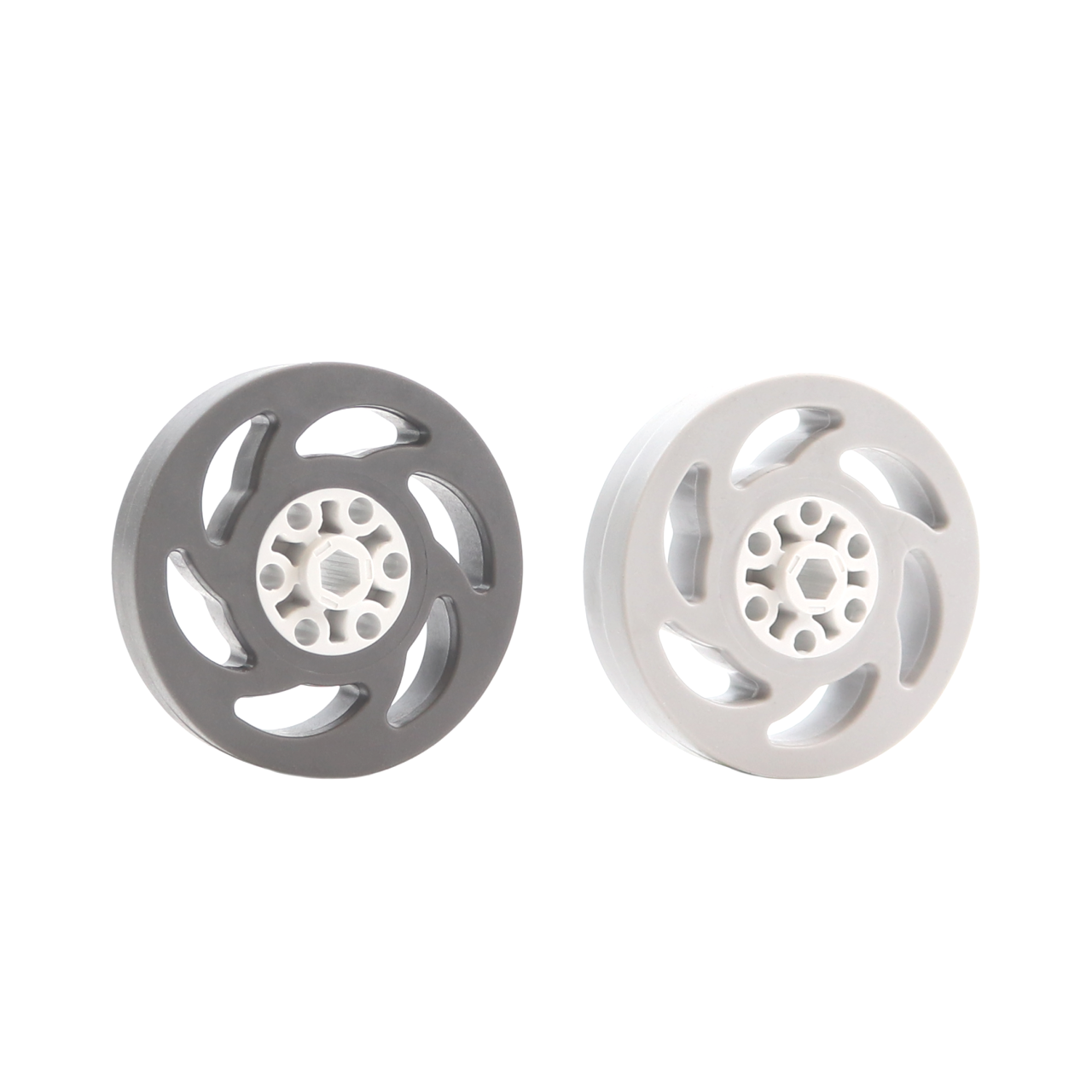

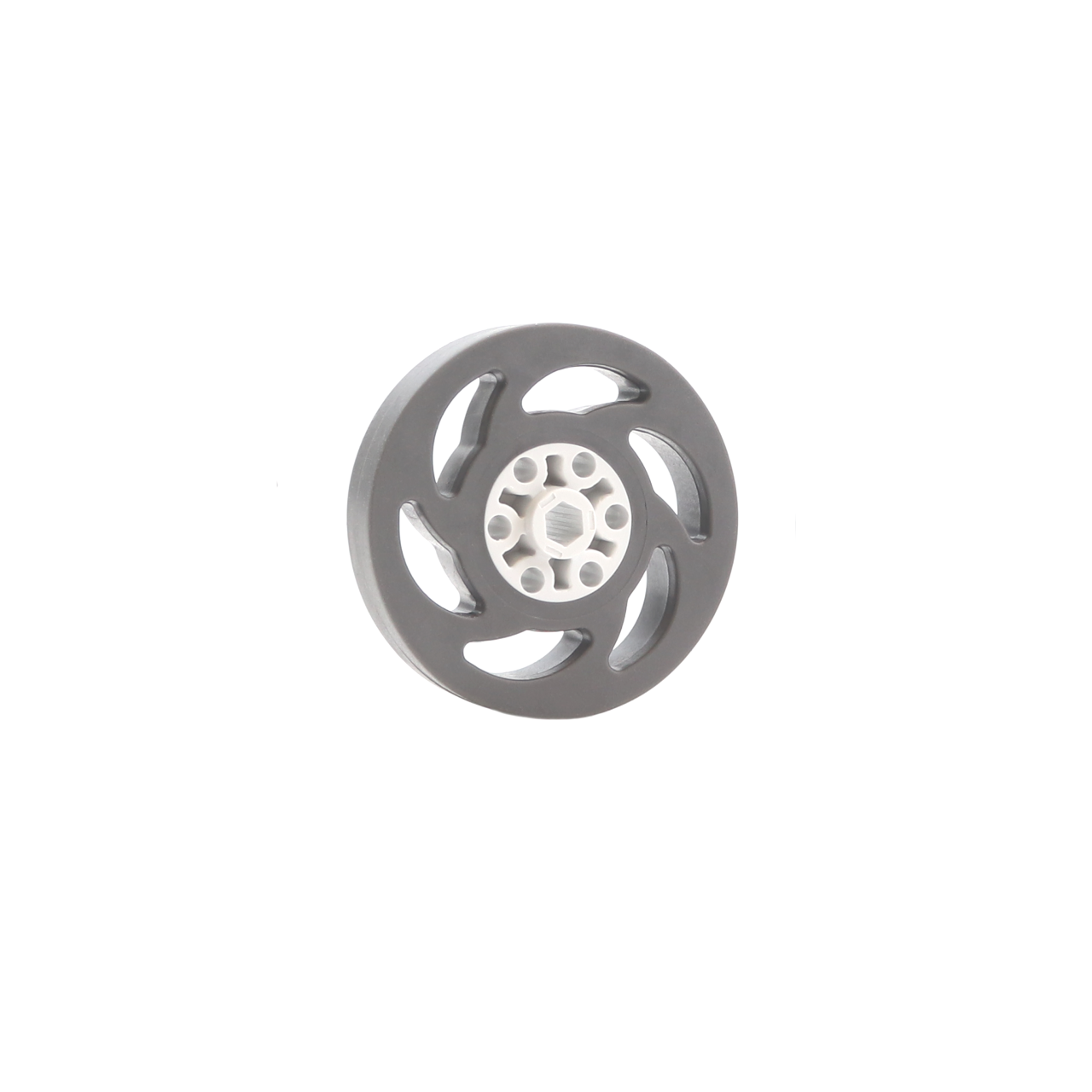

DUO Compliant Wheels are used for intakes and conveyor systems. Featuring a solid 5mm Hex Hub molded into the wheel making sure more power is driven by the wheel, combined with the “hurricane” cutouts to ensure even compliance across the rotation of the wheel. These wheels come in two different durometers, Soft – Light Gray 30A and Medium – Gray 40A. As the tread durometer increases the compliant wheel gets harder which will change traction, wear, and compliance of the wheel.

Description

Specifications

  • Diameter: 2in (50.8mm)
  • Width: 0.5in (12.7mm)
  • Hub Material: Polypropylene
  • Hub Bore: 5mm Hex
  • Tread Material: Thermoplastic Rubber
  • Tread Durometer: Varies (see table below)
  • Weight (single wheel): 0.64oz (18.1g)
  • RPM Rating: 5,500 RPM
 HARDNESS  COLOR  DUROMETER
 Medium like a pencil eraser  Gray  40A
 Soft like a rubber band  Light Gray  30A



Additional information

Weight 0.1814 kg
Dimensions 5.08 × 1.27 × 5.08 cm
Compliant Wheel

(REV-41-2034-PK4) Compliant Wheel – 2in – 5mm Hex Bore – Medium (Gray) – 4 Pack, (REV-41-2035-PK4) Compliant Wheel – 2in – 5mm Hex Bore – Soft (Light Gray) – 4 Pack
