DUO Grip Wheels

$16.00

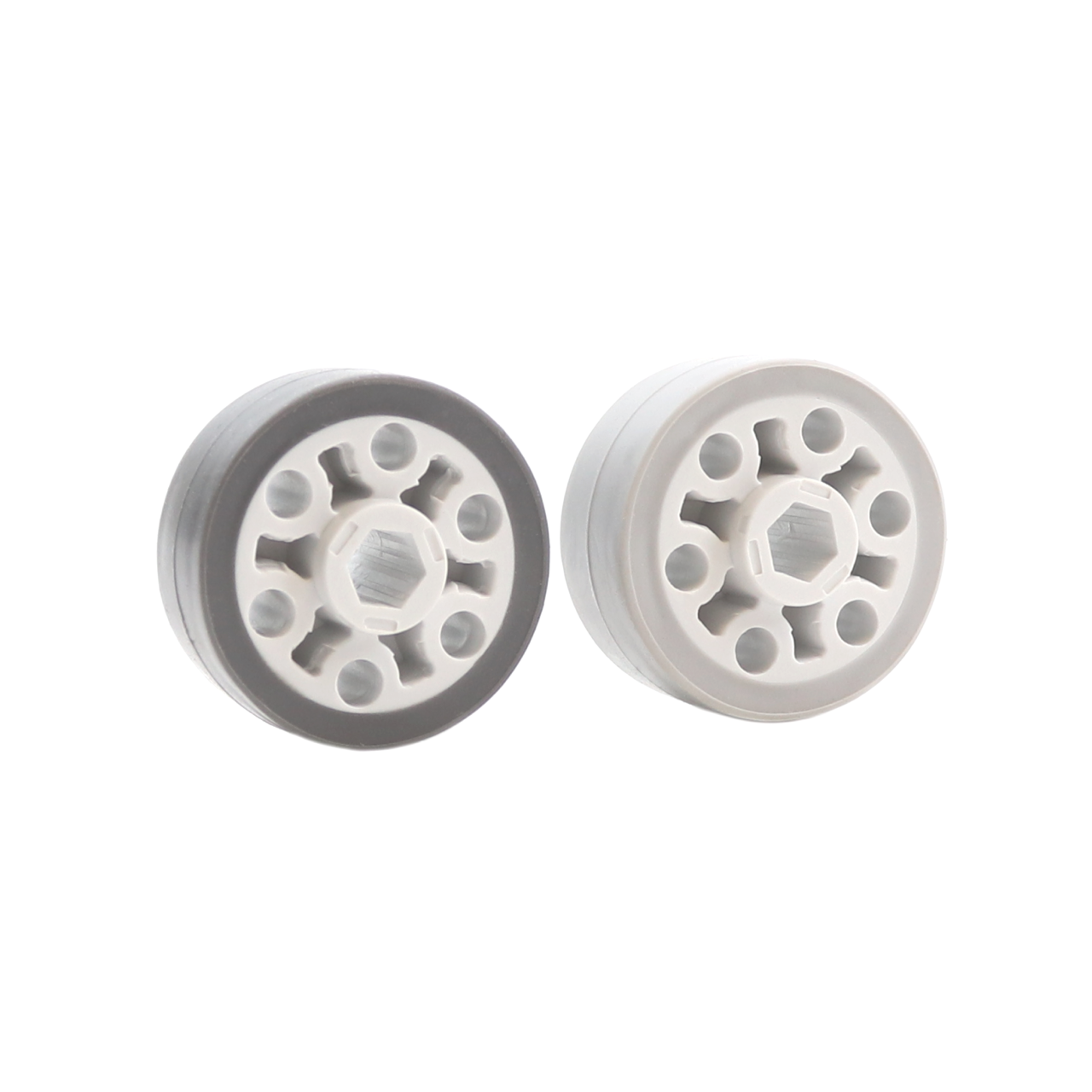

DUO Grip Wheels are used for intakes, conveyor systems, and shooters. With a solid 5mm Hex Hub molded into the wheel no external hub is required. These wheels come in two different durometers, Soft – Light Gray 30A and Medium – Gray 40A. As the tread durometer increases the roller wheel gets harder which will change traction, wear, and compliance of the wheel.

Description

Specifications

  • Diameter: 1in (25.4mm)
  • Width: 0.5in (12.7mm)
  • Hub Material: Polypropylene
  • Hub Bore: 5mm Hex
  • Tread Material: Thermoplastic Rubber
  • Tread Durometer: Varies (see table below)
  • Weight (single wheel): 0.16oz (4.5g)
  • RPM Rating: 5,500 RPM
 HARDNESS  COLOR  DUROMETER

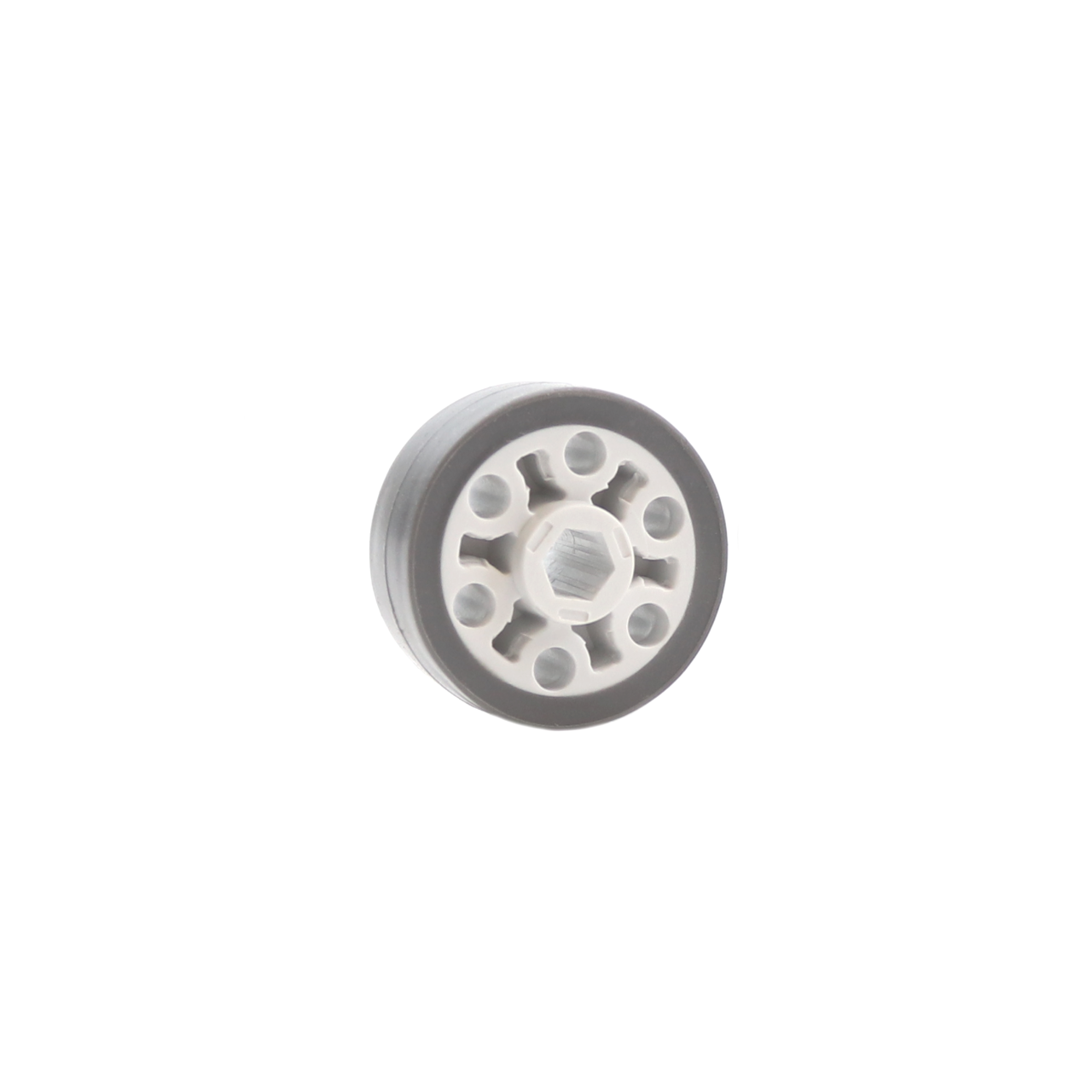

 Medium like a pencil eraser  Gray  40A

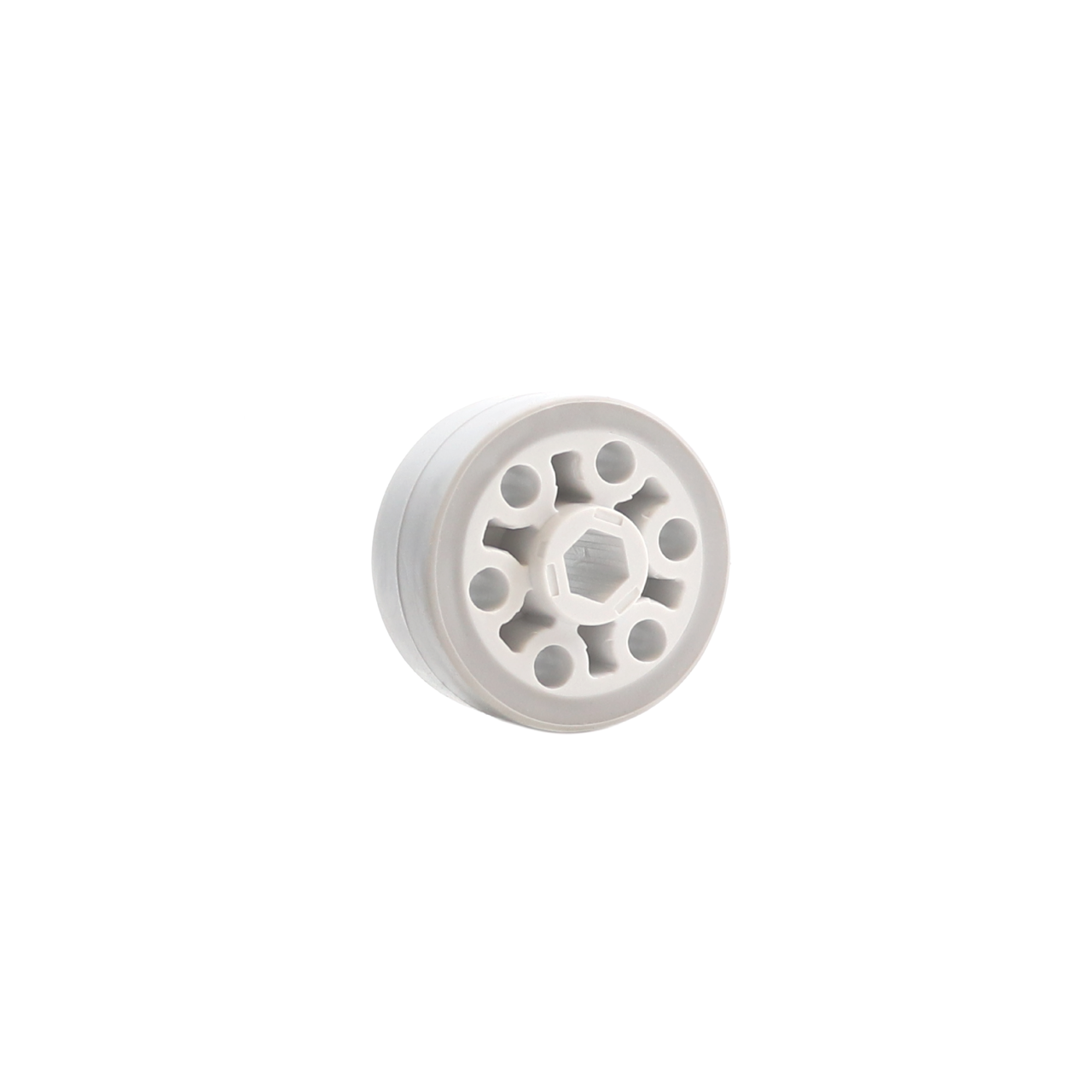

 Soft like a rubber band  Light Gray  30A

Additional information

Weight 0.0045 kg
Dimensions 2.54 × 0.05 × 2.54 cm
Grip Wheel

(REV-41-2149-PK4) 1in Grip Wheel – 5mm Hex Bore – Medium (Gray) – 4 Pack, (REV-41-2150-PK4) 1in Grip Wheel – 5mm Hex Bore – Soft (Light Gray) – 4 Pack
