EDU Kit V2 to Starter Kit V3 Upgrade

$406.50

The EDU Kit V2 (REV-45-2041) was specifically created to implement hands-on STEM projects in the classroom. This upgrade bundle bridges the gap between the new EDU Kit V2 and the FTC Starter Kit V3 (REV-45-1883), providing the needed equipment to transition from classroom to competing at FIRST Tech Challenge events.

This is the same kit (REV Robotics Education Robot Upgrade Kit) that is listed in the FIRST Class Pack Curriculum on the FIRST inspires website.

20 in stock (can be backordered)

Description

Major Upgrades Include:

  • Additional Gamepad and Core Hex Motor
  • C Channel for additional torsional strength
  • Wheels, gears, chain, and sprockets to increase functionality
  • Adaptable programming platform to meet the needs of the competition and the classroom

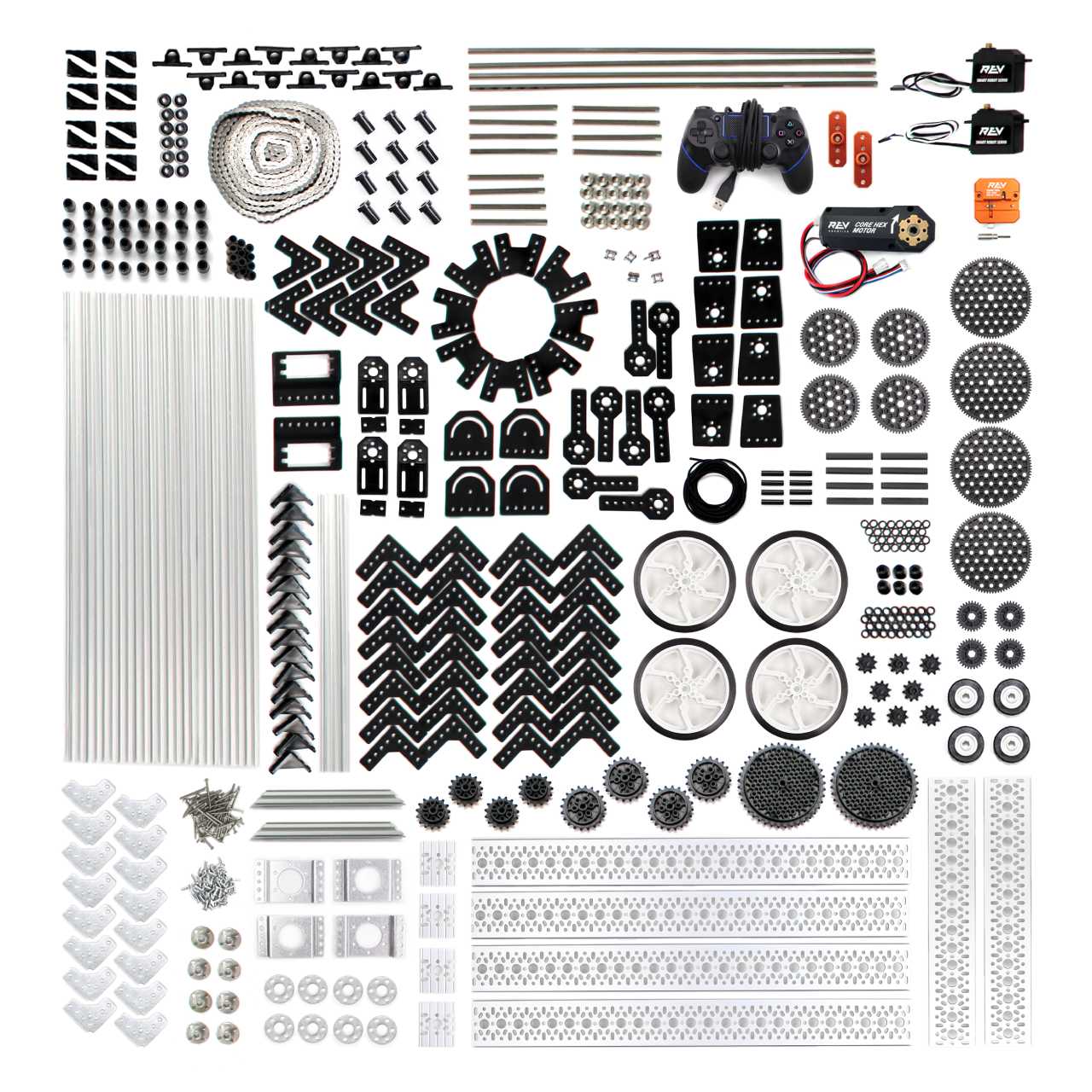

Kit Contents *certain kits may receive additional hardware components

 SKU  PRODUCT NAME  PRODUCT QUANTITY  PACK QUANTITY
 REV-41-1303  15mm Plastic Motion Bracket  QTY 8  QTY 1
 REV-41-1304  15mm Plastic Rod End Bracket  QTY 8  QTY 1
 REV-41-1305  15mm Plastic 90 Degree Bracket  QTY 32  QTY 4
 REV-41-1306  15mm Plastic 60 Degree Bracket  QTY 8  QTY 1
 REV-41-1308  15mm Plastic 30 Degree Bracket  QTY 8  QTY 1
 REV-41-1313  15mm Plastic Indexable Motion Bracket  QTY 4  QTY 1
 REV-41-1318  15mm Plastic Variable Angle Bracket  QTY 4  QTY 1
 REV-41-1319  15mm Plastic Servo Bracket  QTY 2  QTY 1
 REV-41-1320  15mm Plastic Inside Corner Bracket  QTY 16  QTY 2
 REV-41-1321  15mm Plastic Lap Corner Bracket  QTY 16  QTY 2
 REV-41-1430  15mm Extrusion – 150mm – 45° Ends  QTY 2  QTY 1
 REV-41-1432  15mm Extrusion – 420mm – 90° Ends  QTY 12  QTY 3
 REV-41-1480  15mm Metal 90 Degree Bracket V2  QTY 16  QTY 2
 REV-41-1492  M3 Standoff – 40mm  QTY 8  QTY 2
 REV-41-1621  UltraPlanetary Outside Mounting Bracket  QTY 4  QTY 1
 REV-41-1687  U Channel Endcap  QTY 4  QTY 4
 REV-41-1762  45mm x 15mm C Channel – 408mm  QTY 4  QTY 1
 REV-41-1767  45mm x 15mm C Channel – 248mm  QTY 2  QTY 1
 REV-41-1125  M3 x 35mm Hex Cap Screws  QTY 50  QTY 1
 REV-41-1163  Surgical Tubing, 3mm  QTY 1  QTY 1
 REV-41-1442  #25 Chain Tool  QTY 1  QTY 1
 REV-41-1907  M3 X 8mm T-Slot Screws  QTY 25  QTY 1
 REV-41-1147  High Strength Hex Hub  QTY 8  QTY 4
 REV-41-1328  Servo Shaft Adapter  QTY 4  QTY 1
 REV-41-1332  30 Tooth Plastic Gear  QTY 4  QTY 1
 REV-41-1335  60 Tooth Plastic Gear  QTY 4  QTY 1
 REV-41-1337  90 Tooth Plastic Gear  QTY 4  QTY 2
 REV-41-1338  10 Tooth #25 Sprocket  QTY 8  QTY 2
 REV-41-1339  15 Tooth #25 Sprocket  QTY 4  QTY 1
 REV-41-1340  20 Tooth #25 Sprocket  QTY 4  QTY 1
 REV-41-1343  40 Tooth #25 Sprocket  QTY 2  QTY 1
 REV-41-1347  5mm x 75mm Hex Shaft  QTY 4  QTY 1
 REV-41-1348  5mm x 90mm Hex Shaft  QTY 4  QTY 1
 REV-41-1362  5mm x 400mm Hex Shaft  QTY 4  QTY 1
 REV-41-1365  #25 Roller Chain – 10 ft  QTY 1  QTY 1
 REV-41-1366  #25 Master Links  QTY 5  QTY 1
 REV-41-1702  Tensioning Bushing – 39mm  QTY 8  QTY 2
 REV-41-1317  15mm Bearing Pillow Block  QTY 16  QTY 2
 REV-41-1322  End Cap Bearing  QTY 32  QTY 4
 REV-41-1326  Through Bore Bearing, Short  QTY 12  QTY 1
 REV-41-1329  Through Bore Bearing, Long  QTY 12  QTY 1
 REV-41-1846  Motion Pattern Spacer  QTY 8  QTY 1
 REV-41-1323  15mm Spacer  QTY 12  QTY 1
 REV-41-1324  3mm Spacer  QTY 32  QTY 2
 REV-41-1325  1.5mm Spacer  QTY 28  QTY 1
 REV-41-1327  Shaft Collars  QTY 20  QTY 2
 REV-41-1267  90mm Grip Wheel  QTY 4  QTY 1
 REV-41-1353  30mm Traction Wheel  QTY 4  QTY 1
 REV-41-1097  Smart Robot Servo  QTY 2  QTY 2
 REV-41-1300  Core Hex Motor  QTY 1  QTY 1
 REV-41-1820  Aluminum Double Servo Arm  QTY 2  QTY 2
 REV-41-1300  Core Hex Motor  QTY 1  QTY 1
 REV-39-1647  Gamepad  QTY 1
