Description
Features

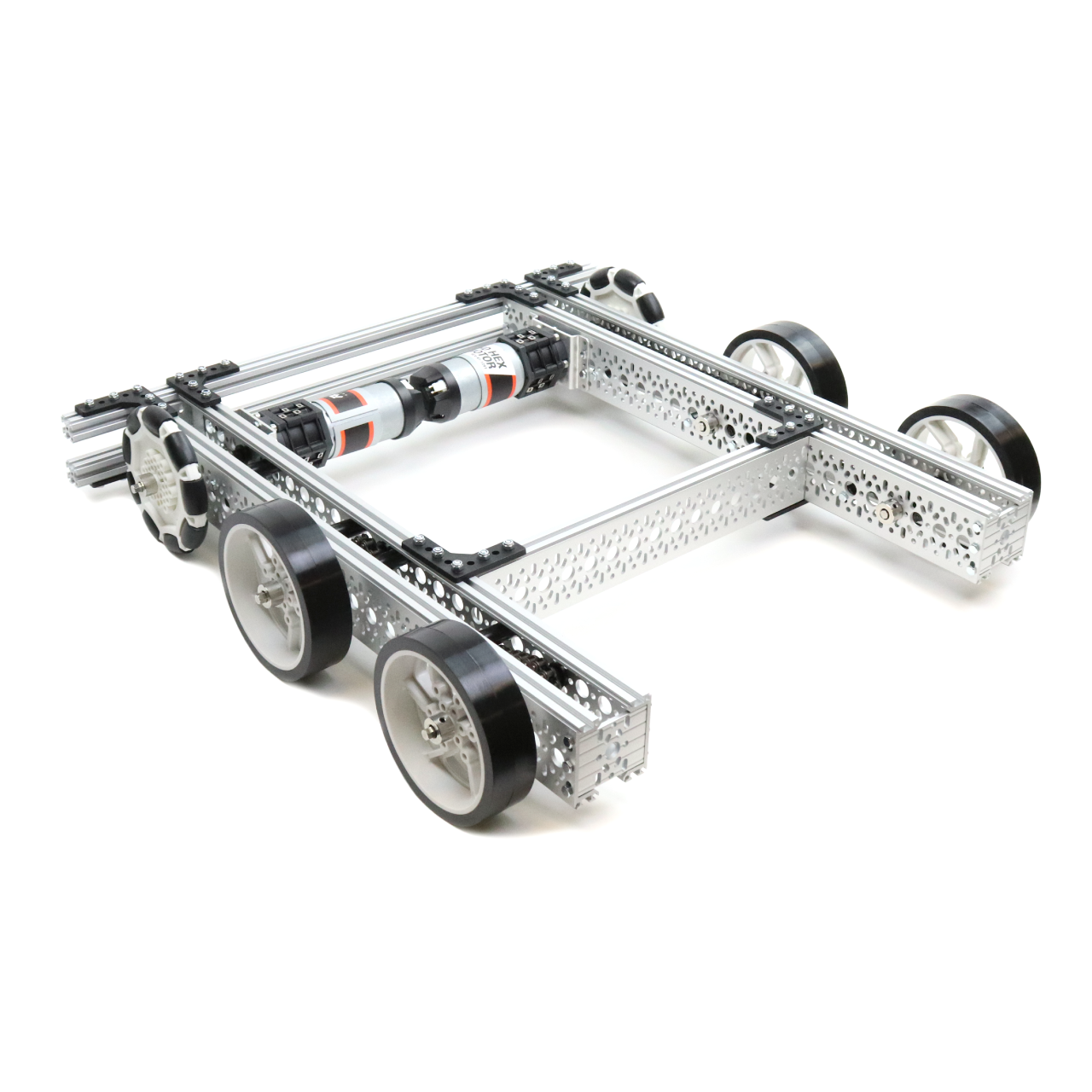

- C Channel aluminum structure
- Configurable UltraPlanetary Gearboxes
- Smart Robot Servos with new accessories
- Grip Wheels
- Chain Tool
Need help getting started? Check out our New Guide to help!

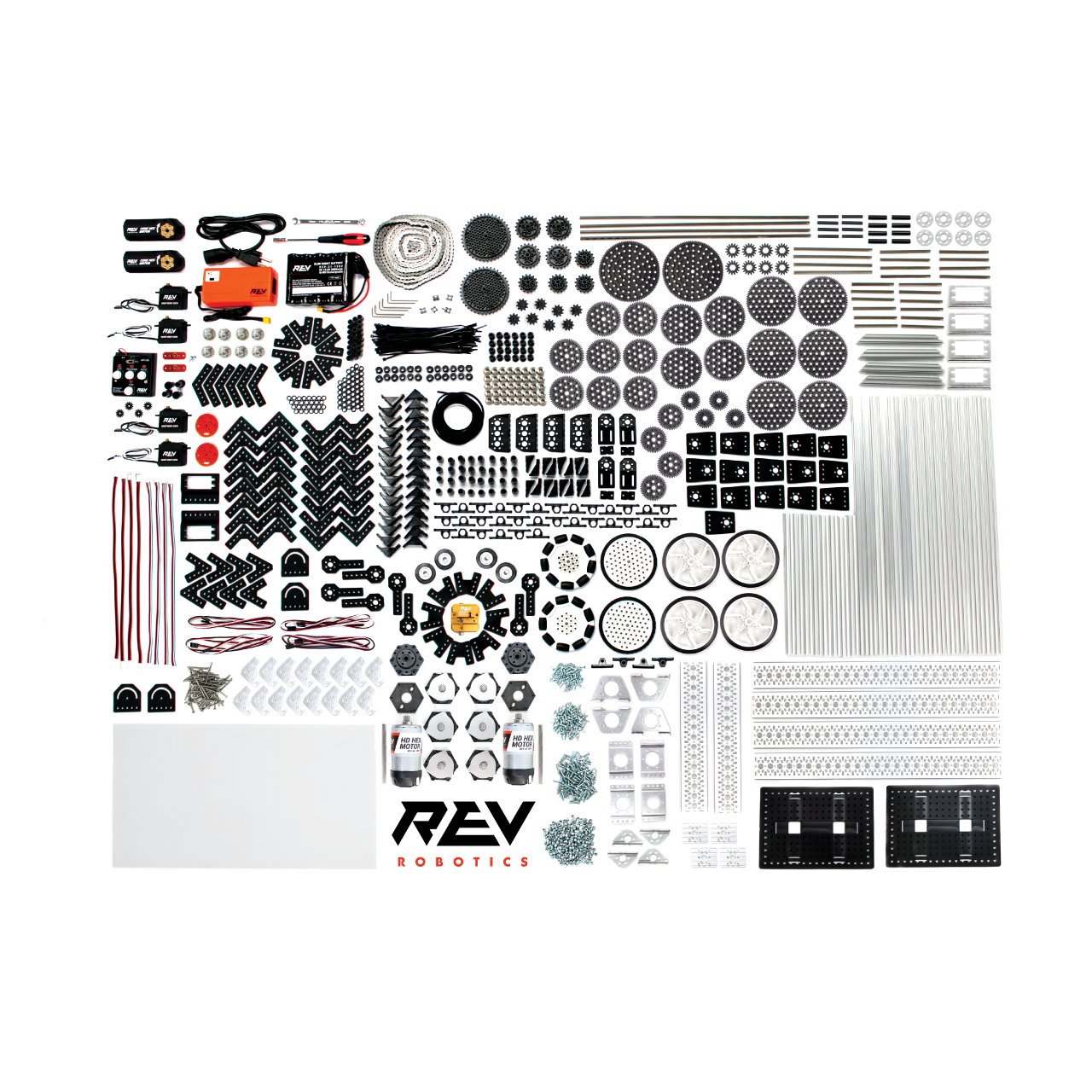

Kit Contents
- Download a Visual Parts List
Structure:
| SKU | PRODUCT NAME | QUANTITY |
| REV-41-1485 | 15mm Metal Bent Servo Bracket V2 – 4 Pack | QTY 1 |
| REV-41-1433 | 15mm Metal Bent Core Hex Motor Bracket V2 – 4 Pack | QTY 1 |
| REV-41-1480 | 15mm Metal 90 Degree Bracket V2 – 8 Pack | QTY 2 |
| REV-41-1687 | U Channel Endcap | QTY 4 |
| REV-41-1621 | UltraPlanetary Outside Mounting Bracket – 4 Pack | QTY 1 |
| REV-41-1623 | UltraPlanetary Bent Mounting Bracket – 4 Pack | QTY 1 |
| REV-41-1624 | UltraPlanetary Flat Mounting Bracket – 4 Pack | QTY 1 |
| REV-41-1846 | Motion Pattern Spacer – 8 Pack | QTY 1 |
| REV-41-1762 | 45mm x 15mm C Channel – 408mm | QTY 4 |
| REV-41-1767 | 45mm x 15mm C Channel – 248mm | QTY 2 |
| REV-41-1166 | Battery Holder Plate – 2 Pack | QTY 1 |
| REV-41-1303 | 15mm Plastic Motion Bracket – 8 Pack | QTY 2 |
| REV-41-1304 | 15mm Plastic Rod End Bracket – 8 Pack | QTY 1 |
| REV-41-1305 | 15mm Plastic 90 Degree Bracket – 8 Pack | QTY 4 |
| REV-41-1306 | 15mm Plastic 60 Degree Bracket – 8 Pack | QTY 1 |
| REV-41-1307 | 15mm Plastic 45 Degree Bracket – 8 Pack | QTY 1 |
| REV-41-1308 | 15mm Plastic 30 Degree Bracket – 8 Pack | QTY 1 |
| REV-41-1311 | 15mm Plastic 120 Degree Bracket – 6 Pack | QTY 1 |
| REV-41-1313 | 15mm Plastic Indexable Motion Bracket – 4 Pack | QTY 1 |
| REV-41-1315 | 15mm Gearbox Motion Bracket – 4 Pack | QTY 1 |
| REV-41-1318 | 15mm Plastic Variable Angle Bracket – 4 Pack | QTY 1 |
| REV-41-1319 | 15mm Plastic Servo Bracket – 2 Pack | QTY 1 |
| REV-41-1320 | 15mm Plastic Inside Corner Bracket – 8 Pack | QTY 4 |
| REV-41-1321 | 15mm Plastic Lap Corner Bracket – 8 Pack | QTY 2 |
| REV-41-1430 | 15mm Extrusion – 150mm – 45° Ends – 2 Pack | QTY 2 |
| REV-41-1431 | 15mm Extrusion – 225mm – 90° Ends – 2 Pack | QTY 4 |
| REV-41-1432 | 15mm Extrusion – 420mm – 90° Ends – 4 Pack | QTY 4 |
| REV-41-1839 | 450mm x 300mm x 4mm Corrugated Plastic Sheet | QTY 2 |
| REV-41-1568 | 15mm Extrusion – 120mm – 90° Ends – 2 Pack | QTY 3 |
Hardware and Tools:
| SKU | PRODUCT NAME | QUANTITY |
| REV-45-1882 | Allen Wrench Kit | QTY 1 |
| REV-41-1373 | Hook and Loop Fastener – 13.5mm x 2mm | QTY 1 |
| REV-41-1125 | M3 x 35mm Hex Cap Screws – 50 Pack | QTY 1 |
| REV-41-1442 | #25 Chain Tool | QTY 1 |
| REV-41-1492 | M3 Standoff – 40mm – 4 Pack | QTY 2 |
| REV-41-1702 | Tensioning Bushing – 39mm – 4 Pack | QTY 2 |
| REV-41-1119 | 5.5mm Nut Driver | QTY 1 |
| REV-41-1161 | Zip Ties – 160mm – 50 Pack | QTY 1 |
| REV-41-1163 | Surgical Tubing – 3mm | QTY 1 |
| REV-41-1907 | M3 X 8MM T-Slot Screw – 25 Pack | QTY 2 |
| REV-41-1359 | M3 x 8mm Hex Cap Screws – 100 Pack | QTY 3 |
| REV-41-1360 | M3 x 16mm Hex Cap Screws – 100 Pack | QTY 1 |
| REV-41-1361 | M3 Nyloc Nuts – 100 Pack | QTY 4 |
| REV-41-1374 | 5.5mm Combination Wrench | QTY 1 |
Transmitting and Transforming Motion:
| SKU | PRODUCT NAME | QUANTITY |
| REV-41-1364 | Servo Gear Adapter – 4 Pack | QTY 1 |
| REV-41-1820 | Aluminum Double Servo Arm | QTY 2 |
| REV-41-1828 | Aluminum Servo Horn V2 | QTY 2 |
| REV-41-1147 | High Strength Hex Hub – 2 Pack | QTY 4 |
| REV-41-1331 | 15 Tooth Plastic Gear – 8 Pack | QTY 1 |
| REV-41-1332 | 30 Tooth Plastic Gear – 4 Pack | QTY 1 |
| REV-41-1333 | 125 Tooth Plastic Gear – 2 Pack | QTY 2 |
| REV-41-1334 | 45 Tooth Plastic Gear – 4 Pack | QTY 1 |
| REV-41-1335 | 60 Tooth Plastic Gear – 4 Pack | QTY 2 |
| REV-41-1336 | 72 Tooth Plastic Gear – 4 Pack | QTY 1 |
| REV-41-1337 | 90 Tooth Plastic Gear – 2 Pack | QTY 3 |
| REV-41-1338 | 10 Tooth #25 Sprocket – 4 Pack | QTY 2 |
| REV-41-1339 | 15 Tooth #25 Sprocket – 4 Pack | QTY 1 |
| REV-41-1340 | 20 Tooth #25 Sprocket – 4 Pack | QTY 1 |
| REV-41-1343 | 40 Tooth #25 Sprocket – 2 Pack | QTY 1 |
| REV-41-1347 | 5mm x 75mm Hex Shaft – 4 Pack | QTY 3 |
| REV-41-1348 | 5mm x 90mm Hex Shaft – 4 Pack | QTY 2 |
| REV-41-1349 | 5mm x 135mm Hex Shaft – 4 Pack | QTY 1 |
| REV-41-1362 | 5mm x 400mm Hex Shaft – 4 Pack | QTY 1 |
| REV-41-1365 | #25 Roller Chain – 10 ft | QTY 1 |
| REV-41-1366 | #25 Master Links – 5 Pack | QTY 1 |
Supporting Motion:
| SKU | PRODUCT NAME | QUANTITY |
| REV-41-1316 | 15mm Hex Pillow Block – 4 Pack | QTY 1 |
| REV-41-1317 | 15mm Bearing Pillow Block – 8 Pack | QTY 4 |
| REV-41-1322 | End Cap Bearing – 8 Pack | QTY 4 |
| REV-41-1326 | Through Bore Bearing – Short – 12 Pack | QTY 2 |
| REV-41-1328 | Servo Shaft Adapter – 4 Pack | QTY 1 |
| REV-41-1329 | Through Bore Bearing – Long – 12 Pack | QTY 2 |
Constraining Motion:
| SKU | PRODUCT NAME | QUANTITY |
| REV-41-1323 | 15mm Spacer – 12 Pack | QTY 2 |
| REV-41-1324 | 3mm Spacer – 16 Pack | QTY 3 |
| REV-41-1325 | 1.5mm Spacers – 28 Pack | QTY 1 |
| REV-41-1327 | Shaft Collars – 10 Pack | QTY 4 |
Control System:
| SKU | PRODUCT NAME | QUANTITY |
| REV-11-1130 | 36″ PWM Cable – 4 Pack | QTY 1 |
| REV-31-1299 | Battery Charger | QTY 1 |
| REV-31-1302 | 12V Slim Battery | QTY 1 |
Drivetrain Types:
| SKU | PRODUCT NAME | QUANTITY |
| REV-41-1267 | 90mm Grip Wheel | QTY 4 |
| REV-41-1190 | 90mm Omni Wheel – 2 Pack | QTY 1 |
| REV-41-1353 | 30mm Traction Wheel – 4 Pack | QTY 1 |
| REV-41-1354 | 90mm Traction Wheel – 2 Pack | QTY 1 |
Actuators:
| SKU | PRODUCT NAME | QUANTITY |
| REV-31-1108 | SRS Programmer | QTY 1 |
| REV-41-1097 | Smart Robot Servo | QTY 4 |
| REV-41-1300 | Core Hex Motor | QTY 2 |
| REV-41-1600 | UltraPlanetary Gearbox Kit & HD Hex Motor | QTY 2 |
Packaging:
| SKU | PRODUCT NAME | QUANTITY |
| N/A | FTC Starter Kit Guide | QTY 1 |
| REV-41-1215 | Storage Tote – Orange | QTY 1 |
