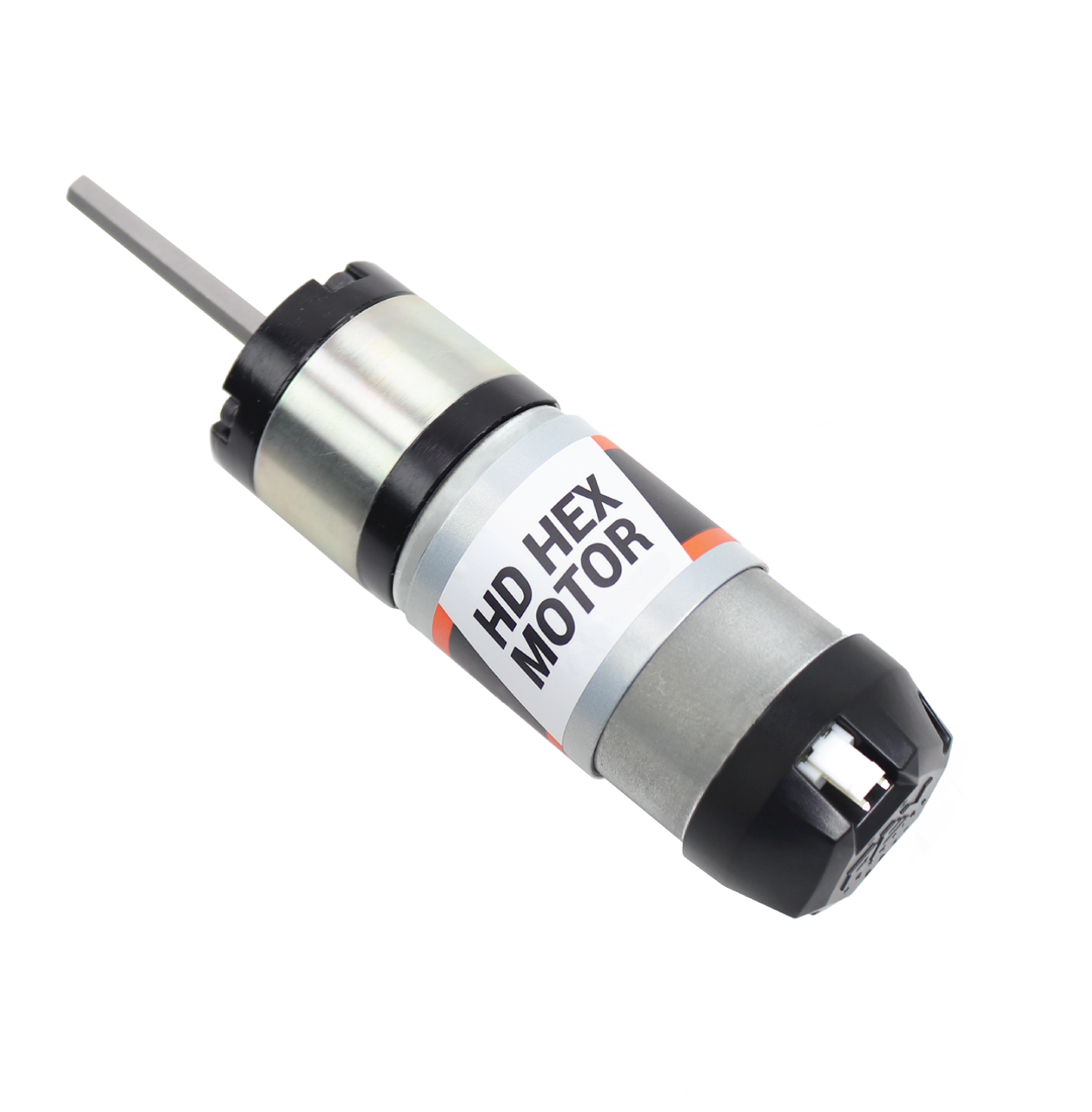

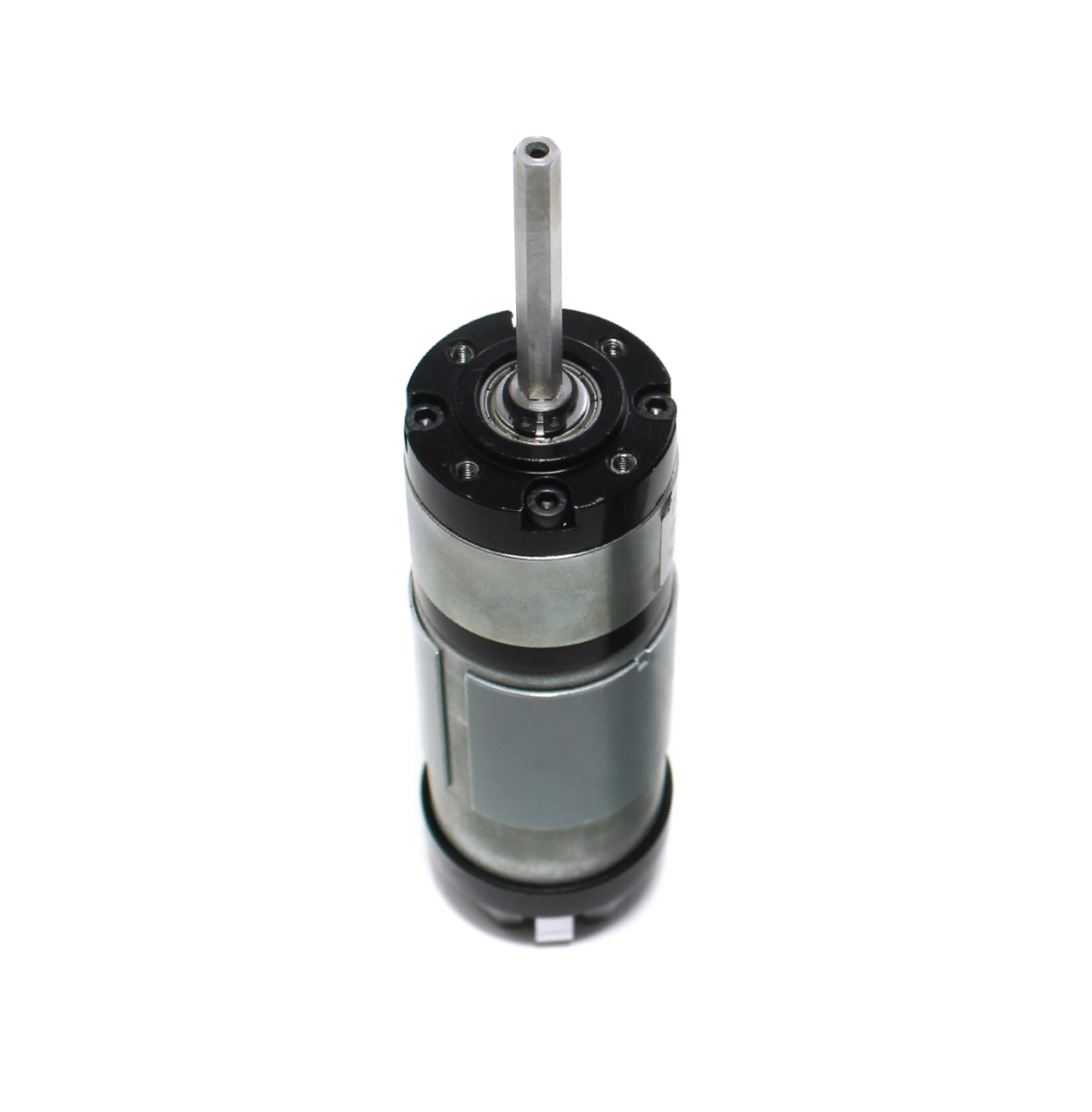

HD Hex Motor 20:1 Planetary Gearbox

$44.00

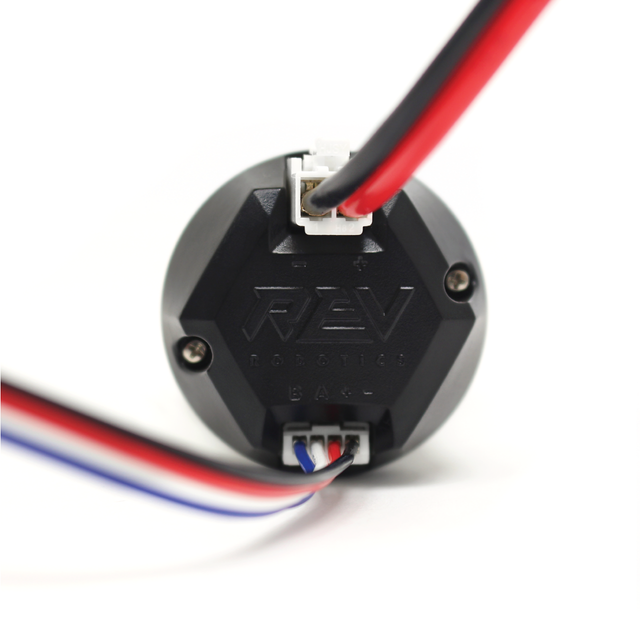

The HD Hex series motors and gearboxes feature integrated encoders and power that plug right into the Control Hub (REV-31-1595) and Expansion Hub (REV-31-1153). The gearbox options feature 5mm Hex output or coupler making it easy to connect gears, sprockets, wheels, etc. Encoder and power cables are included with motor. The HD Hex Motor is similar in size and power to other brushed 550 class motors with more convenient output options and connectors.
The HD Hex Motor 20:1 Planetary Gearbox is compatible with the 15mm Metal Flat Planetary Motor Bracket (REV-41-1564) and 15mm Metal Bent Planetary Motor Bracket (REV-41-1563).

20 in stock (can be backordered)

Description

Specifications

  • Weight: 436g (including motor)
  • Output Shaft: 5mm hex
  • Output Shaft Length: 40mm
  • Free Speed: 300 rpm (31.4 rad/s)
  • Stall Torque: 297.4 oz-in (2.1 Nm)
