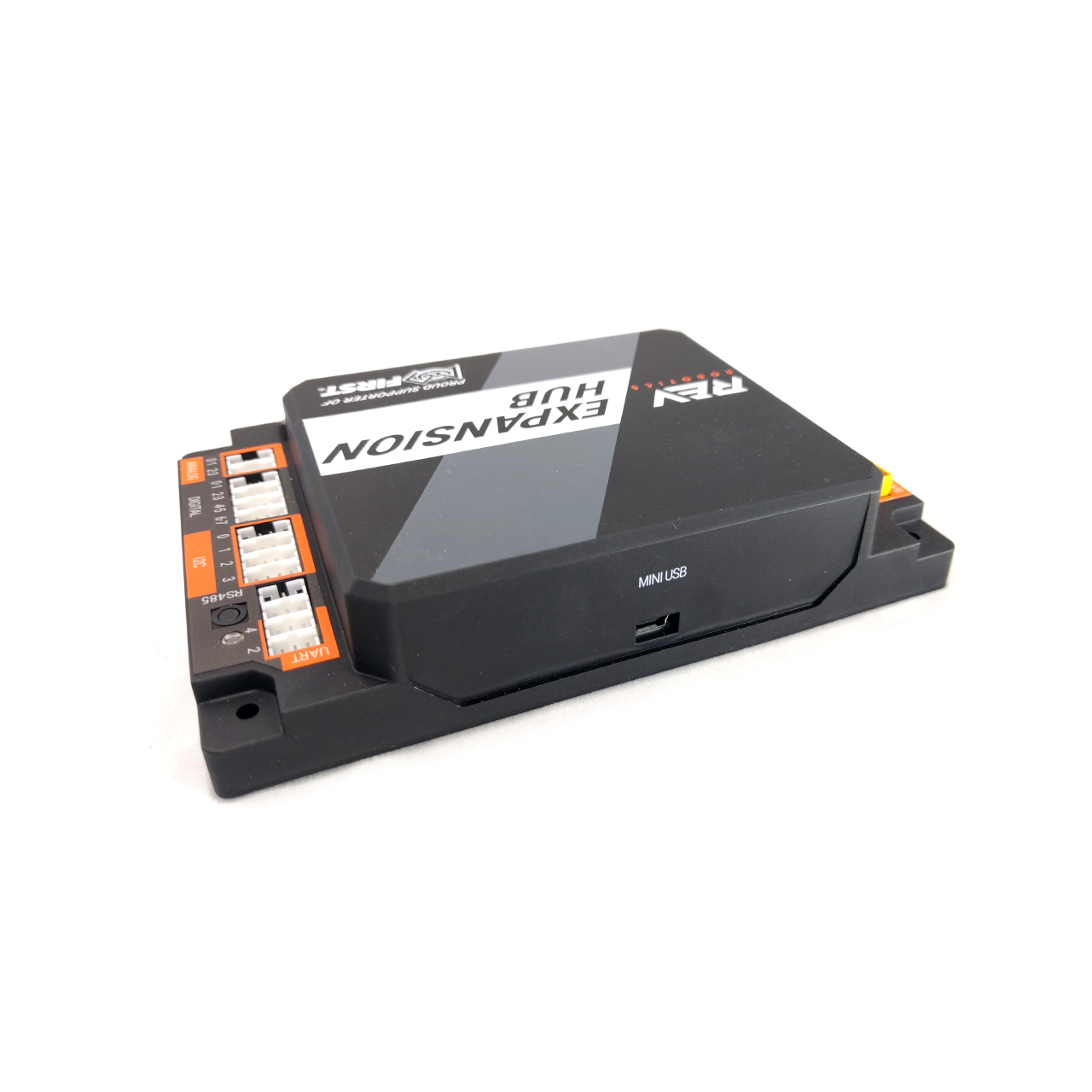

REV Robotics Expansion Hub

$254.00

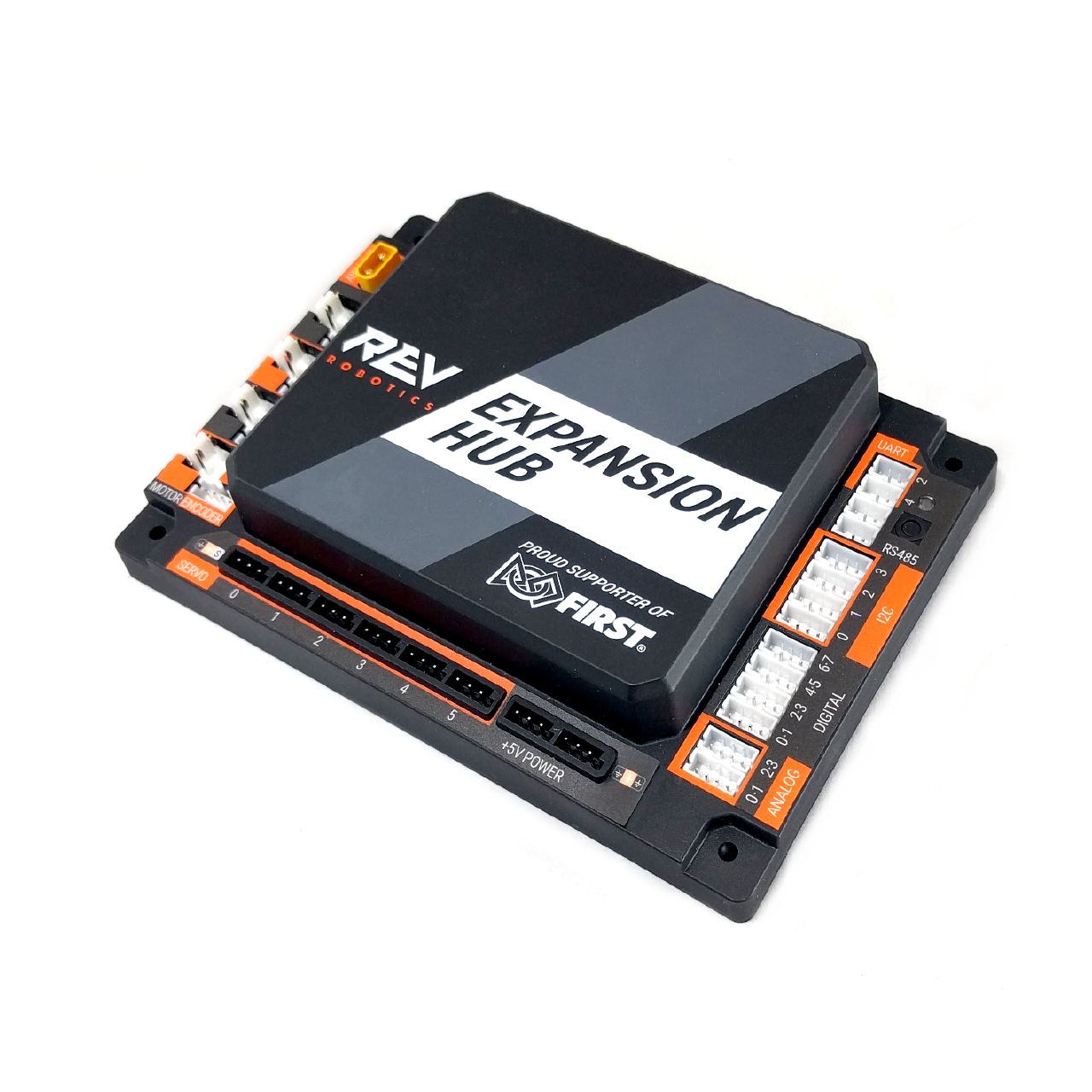

The REV Robotics Expansion Hub is a low-cost educational device that can communicate with any computer (commonly the REV Robotics Control Hub or an Android Phone) to provide the interfaces required for building robots and other mechatronics. The Expansion Hub was purpose built to stand up to the rigors of the classroom and competition field. It features a mature firmware designed for basic and advanced use cases with the ability to be field upgraded in the future.

The REV Robotics Expansion Hub is an approved device for use in the FIRST Tech Challenge and FIRST Global.

20 in stock (can be backordered)

Description

REV Hub Interface Software

The REV Hub Interface is a beta piece of software which allows for direct connection to your REV Expansion Hub and its peripherals from your Windows PC.

This interface provides a method for teams to prototype with motors, servos, and sensors in a way that is faster and easier than setting up an entire robot control system. It is also a valuable troubleshooting tool that can help isolate the cause of an issue and determine if it is electrical or software related. The Expansion Hub firmware can also be updated through this interface in addition to the Robot Controller Application.

Download and Installation Instructions can be found here: REV Hub Interface Software Download and Installation Instructions

Firmware Update – 1.8.2

It is highly recommended that you update the firmware on your REV Expansion Hub to the latest version.

The latest firmware and update instructions can be found here: Expansion Hub Firmware and Update Instructions

Specifications

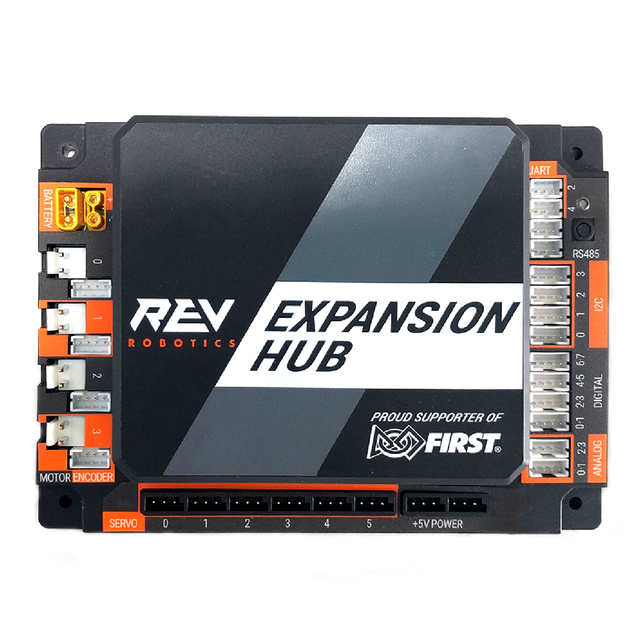

  • Physical Dimensions
    • 143mm X 103mm X 29.5 mm
    • Mounting holes on a 16mm spacing

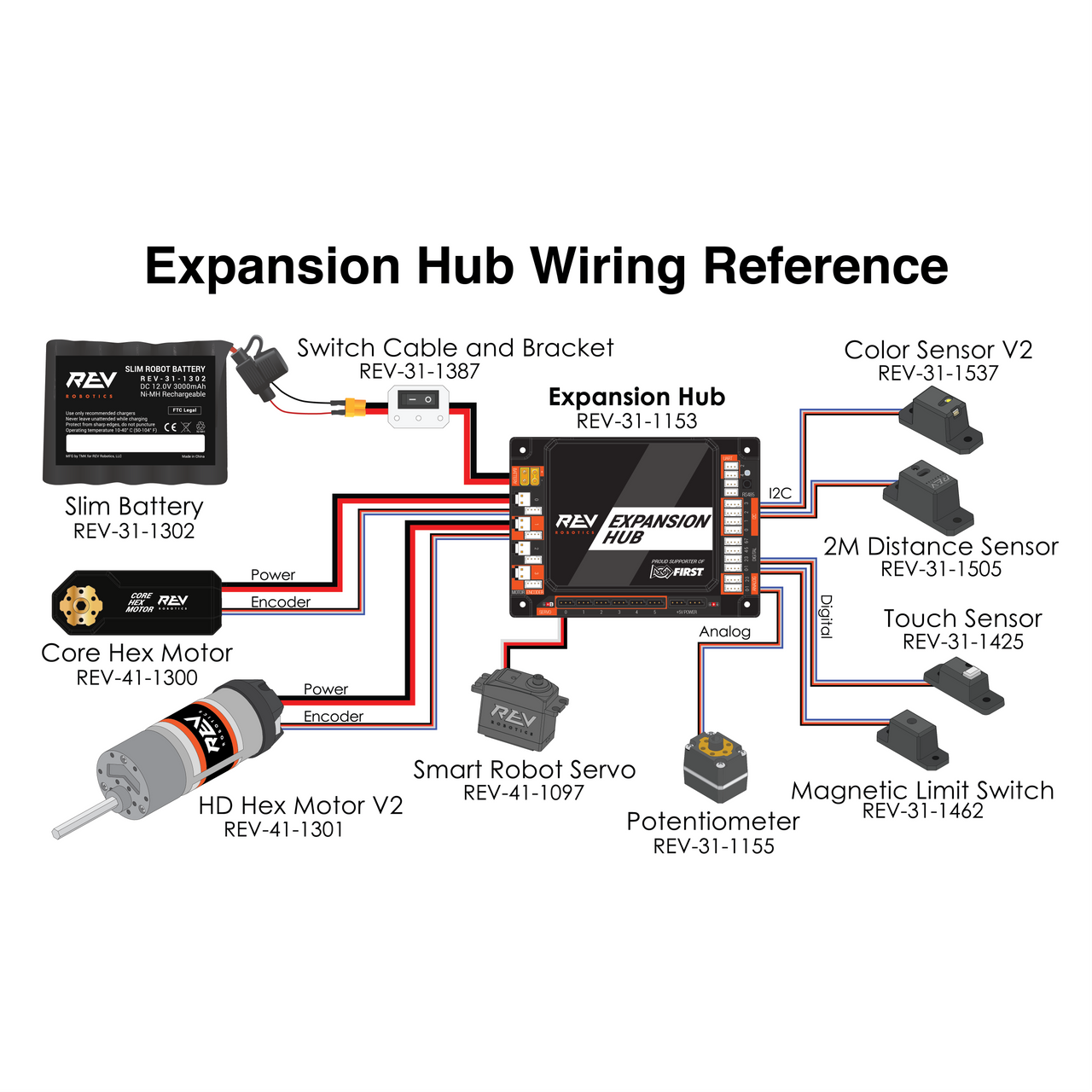

  • Actuator interfaces
    • 4 – DC motor ports with built-in encoder ports
      • Control position and velocity of DC motors
    • 6 – Servo motor ports
      • Small and easy to control actuators
  • Sensor and device interfaces
    • 8 – Digital input/output ports
    • 4 – Analog input ports
    • 4 – Independent I2C ports
    • 1 – Internal 9-axis IMU (Devices shipped after 12/01/2021 no longer feature an IMU)
  • Additional expansion interfaces
    • Connect additional Expansion Hubs to add more actuator and sensor ports
    • 2 – RS485 ports

Learn more about the Expansion Hub in our Product Brief

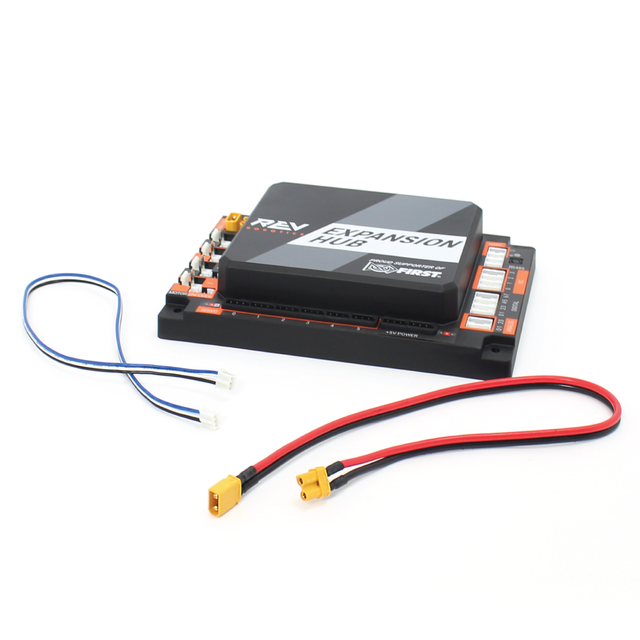

Kit Contents

  • QTY 1 – Expansion Hub
  • QTY 1 – XT30 Extension Cable, 30cm
  • QTY 1 – 3-pin JST PH Cable, 30cm
