Description

Features

• 2-port USB 2.0 hub
  • 2 downstream USB A ports
  • 1 configurable upstream port
    • USB Micro-B OTG
    • USB A
• Powered and un-powered operation
  • External power through JST-PH 2-pin power port
  • Upstream power through upstream port
• Removable JST to USB cables for easy replacement
  • Cables retained within case for strain relief

Specifications

• Nominal Input Voltage: 5.0V
• Maximum downstream current:
  • Un-powered: host dependent
  • Powered: 500mA per port

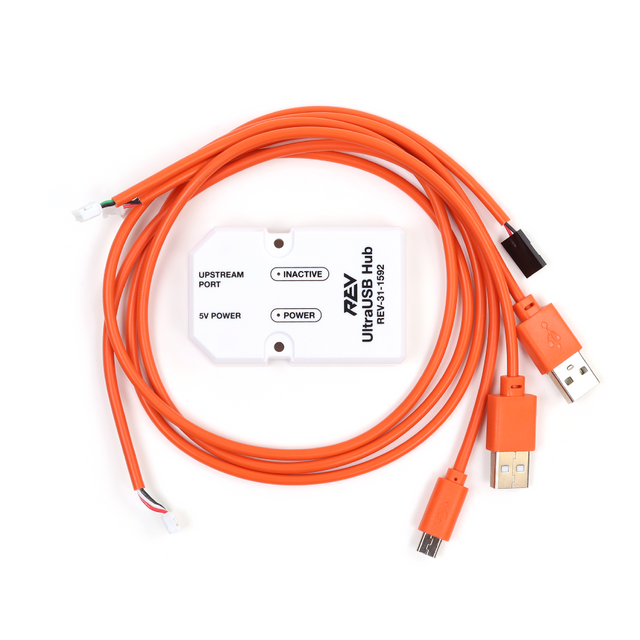

Kit Contents

• QTY 1 – UltraUSB Hub

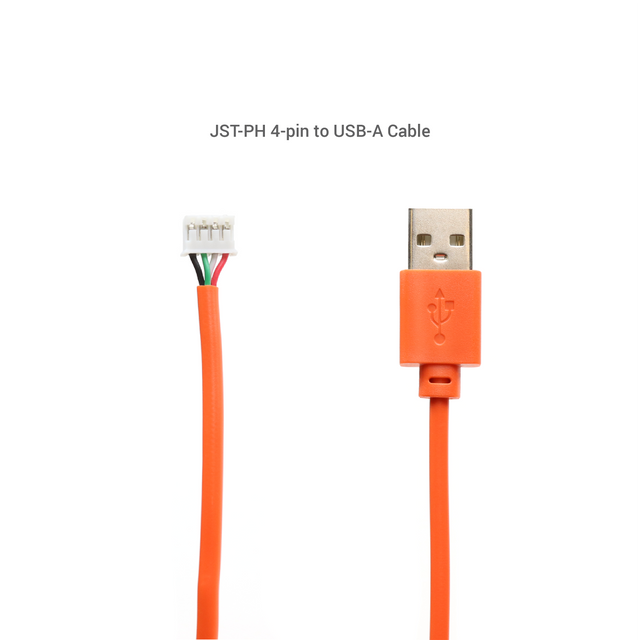

• QTY 1 – JST-PH 4-pin to USB-A Cable for upstream data

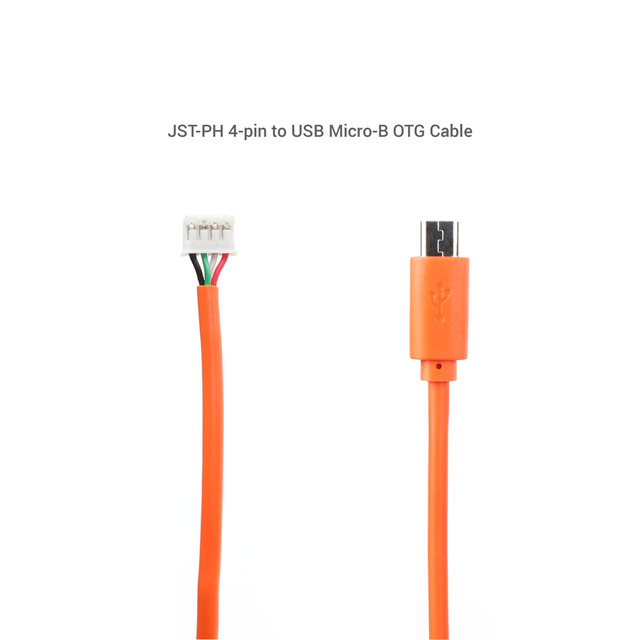

• QTY 1 – JST-PH 4-pin to USB Micro-B OTG Cable for upstream data
• QTY 1 – JST-PH 2-pin to 3-pin 0.1″ (PWM/Dupont) Connector Cable for power

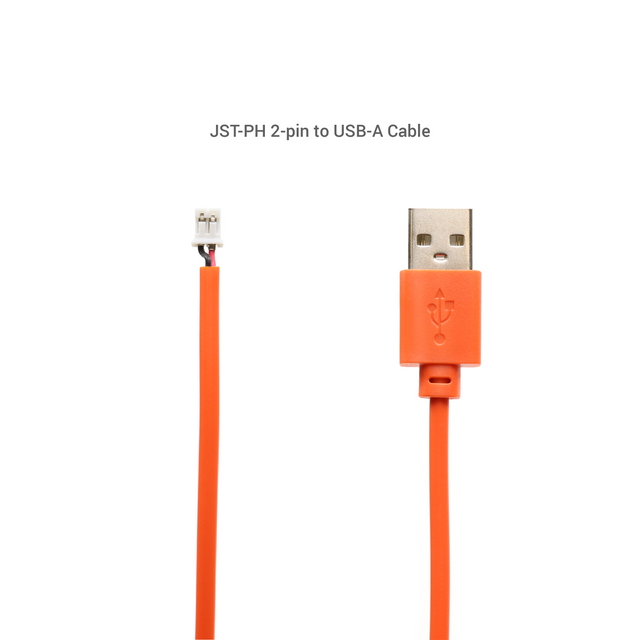

• QTY 1 – JST-PH 2-pin to USB-A Cable for power


  UltraUSB Hub
